At Ravenscraft Implement, we stock a wide selection of Land Pride implements ready to pair with your new Kubota tractor-from box blades and rotary cutters to quick hitches and grading tools. These are just a few of the options available, and we can easily custom-build a package to match your property needs while still qualifying for Kubota’s special financing and package programs. Our goal is to help you find the perfect tools to work your ground — efficiently, affordably, and locally.
“Ravenscraft Implement made buying my tractor simple. Straight answers and fast delivery.”
“Great people. They went through every detail of the Grand L and made the process easy.”
“Delivered to my property right on time. Excellent experience from start to finish.”
Open ROPS Operator Platform — Foldable ROPS, flat deck design, and unobstructed visibility for loader, mowing, and hay work.
K-Command Display — Digital tractor monitoring with customizable settings and system alerts at a glance.
LA806 Loader Compatibility — Heavy-duty lift performance with smooth geometry and protected under-boom hydraulic routing.
High-Output LED Headlights + DRLs — Excellent visibility for early mornings, dusk, and road travel.

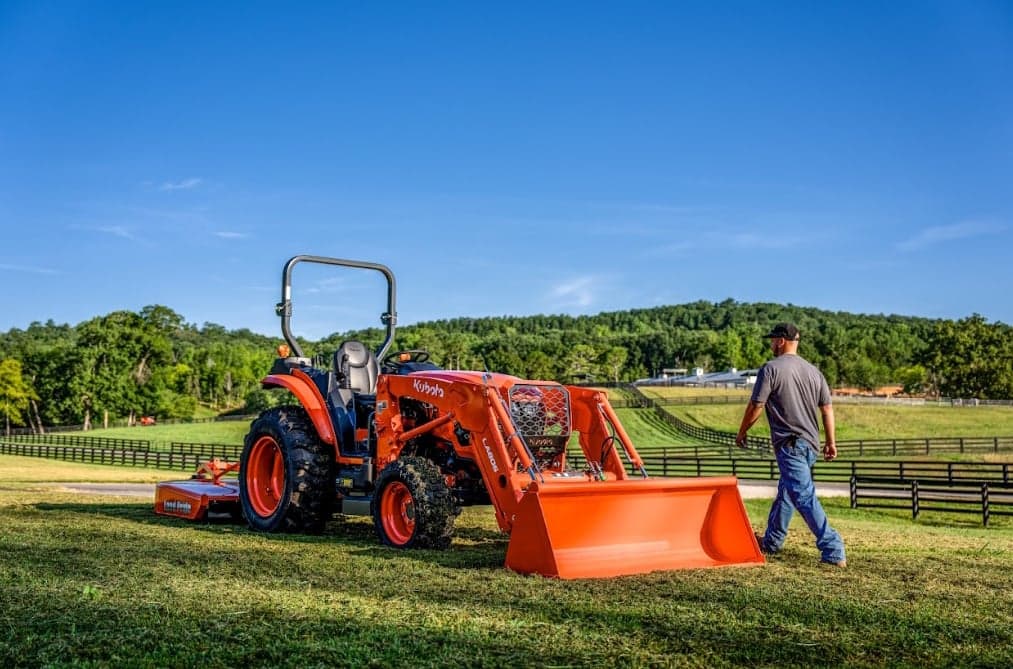

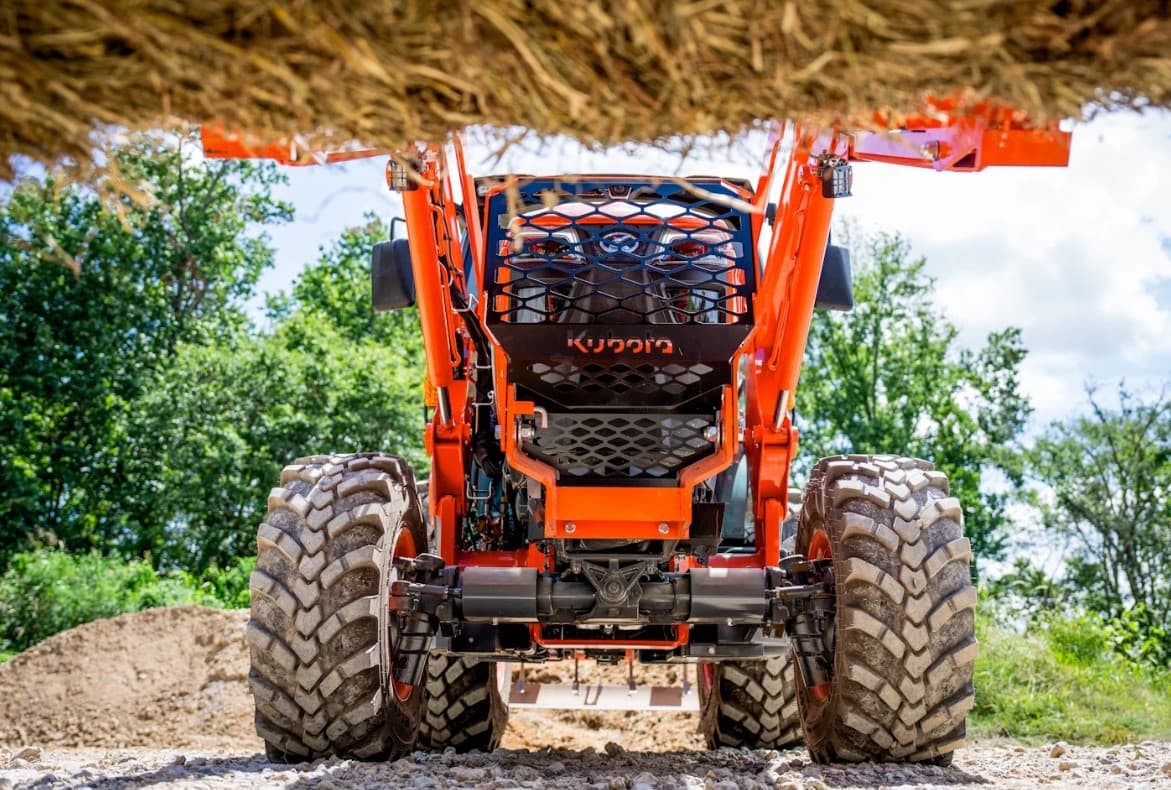

The L4270DLX is the open-station Grand L configuration focused on simplicity, lower cost, and maximum visibility. DLXC and PRMC models add enclosed cab comfort and premium automation features.
The L4270DLX is ideal for customers who want maximum power, visibility, and lower upfront cost. DLXC adds enclosed comfort, and PRMC adds advanced automation and cold-weather performance.
| Engine — Gross HP | 42.0 hp |
| PTO HP | 35.0 hp (540 rpm) |
| Transmission | iHST+ Hydrostatic — 3-range |
| Hydraulic Flow | 8.3 gpm |
| 3-Point Hitch | Category I |
| 3-Pt Lift Capacity | 3,750 lbs @ ball ends 2,650 lbs @ 24" |
| Loader Compatibility | LA806 Loader |
| Overall Width | 64.2 in |
| Wheelbase | 71.1 in |
| Overall Length | 115.9 in |
| Ground Clearance | 14.2 in |
| Fuel Capacity | 13.5 gal |
| Operating Weight (ROPS) | ~3,650 lbs |
| Operator Platform |
• Foldable ROPS • Flat Operator Platform • Open Visibility for Loader & Mowing |
| Seat Options |
• Mechanical Grammer Seat • Optional Air-Ride |
| Optional Features |
• 3rd-Function Hydraulics • Under-Boom LEDs • Brush Guard • Rear Work Lights |
| Loader Model | LA806 |
| Lift Height | 105.4 in |
| Lift Capacity | 1,726 lbs |
| Lift @ 500mm | 1,350–1,420 lbs |
| Breakout Force | ~3,634 lbs |
| Reach at Ground | 74.2 in |
| Dump Angle | 55° |
| Rollback Angle | 40.6° |
| Cycle Times |
Raise: 3.9–4.2 sec Lower: 3.0–3.4 sec Dump: 2.2–2.5 sec Rollback: 2.1–2.4 sec |
| Bucket Width | 72" HD |
| Bucket Capacity | 0.44 cu yd |
| Quick Attach | 2-Lever Skid Steer |
| Hydraulic Routing | Under-boom (clean visibility) |
| Options |
• 3rd-Function Valve • Under-Boom LEDs • Brush Guard • Dual-Function Valve • MSL NOT available (5070/6070 only) |
| Loader Weight | 780–820 lbs |
Delivery available within 100 miles of Whitewater, KS.
