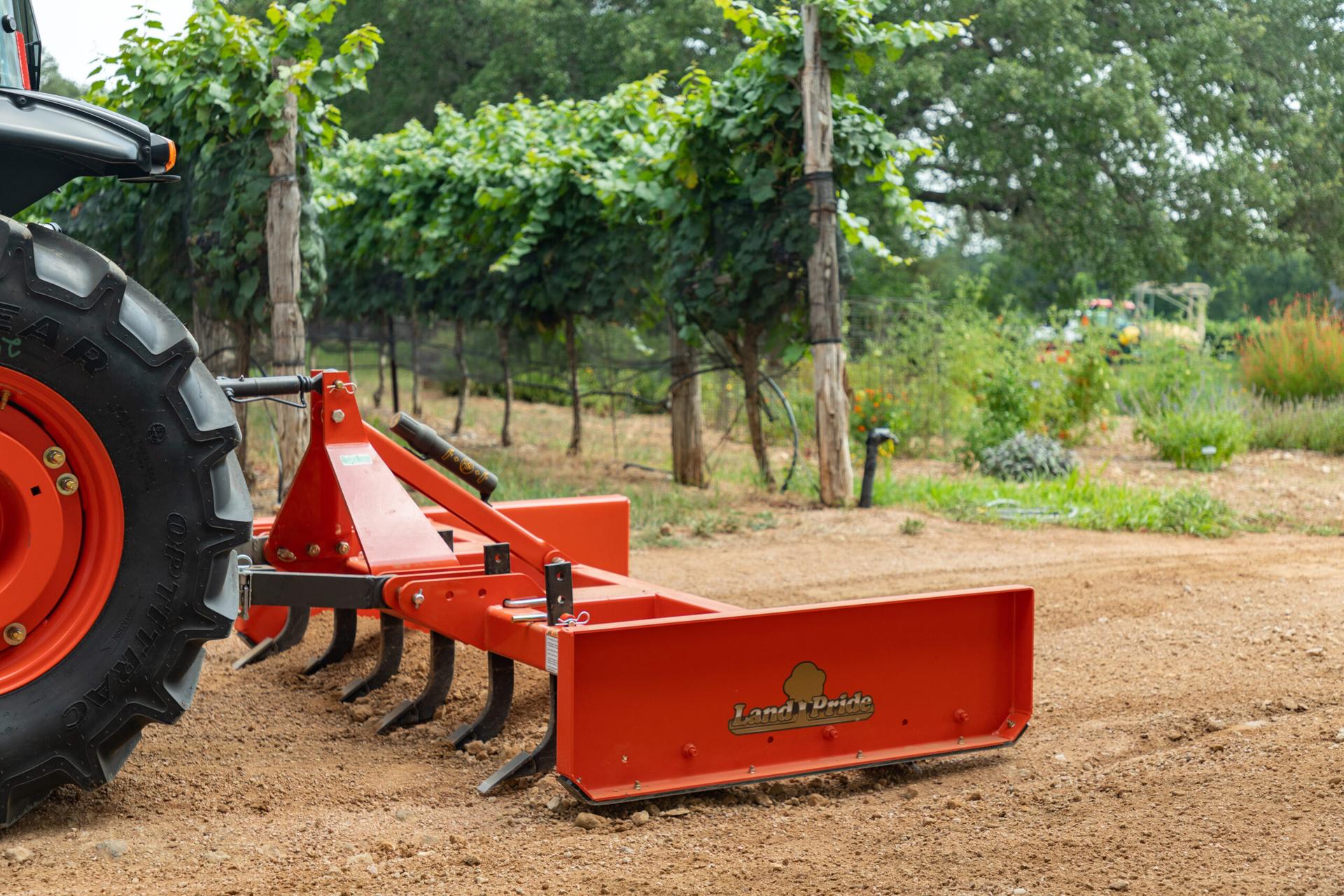

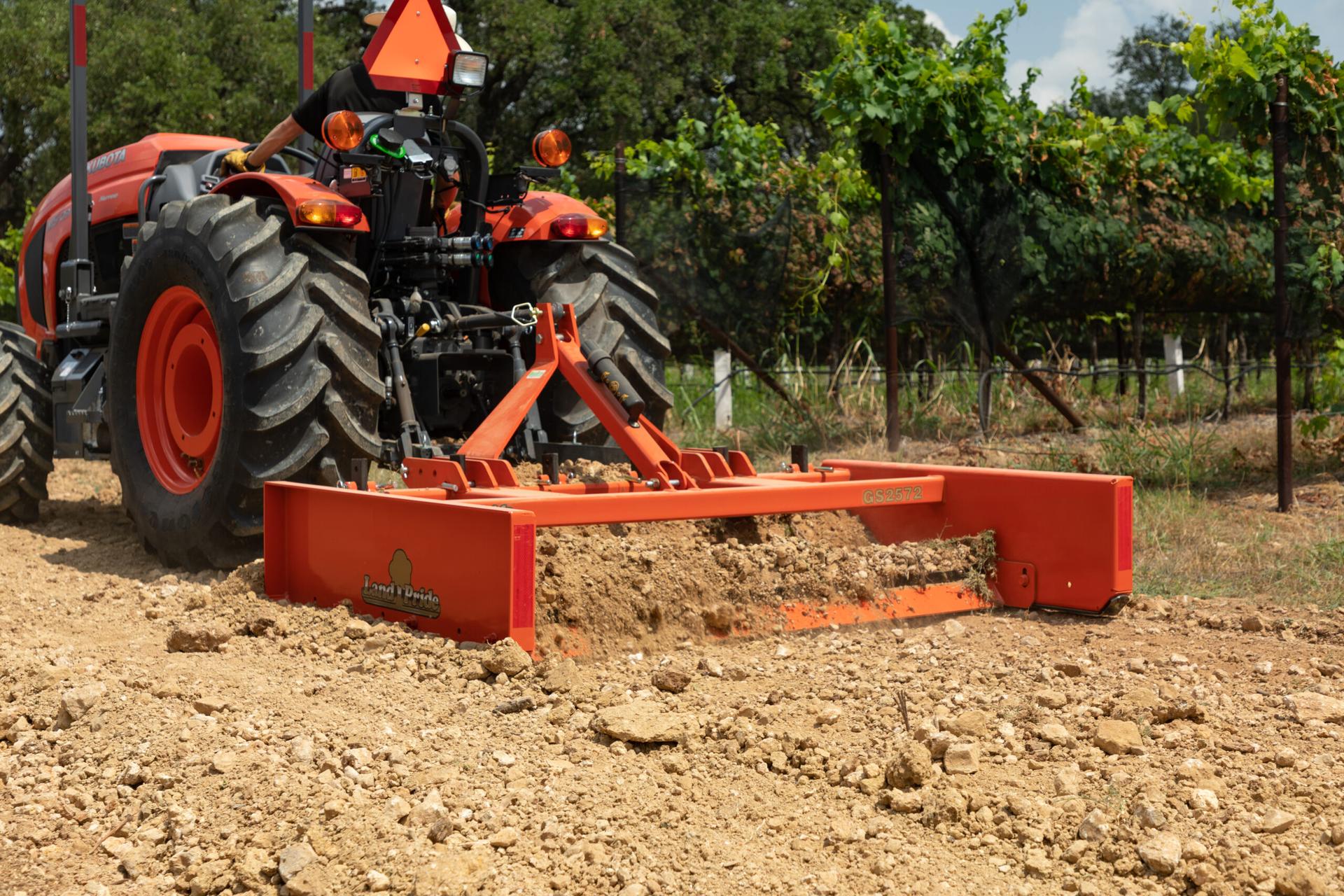

The Land Pride GS2596 is the largest and heaviest grading scraper in the GS25 Series, built for customers who need to maintain miles of gravel roads, ranch lanes, commercial properties, and municipal road systems. With a massive 96-inch working width and an impressive 917-pound operating weight, the GS2596 has the weight and strength to aggressively cut washboards, remove potholes, reclaim gravel from road shoulders, and leave behind a smooth, professionally graded surface. Unlike a traditional box blade that requires constant adjustment and operator skill, the GS2596 automatically levels and redistributes material as you drive, making it one of the fastest and easiest ways to maintain gravel roads.
The GS2596 is ideally matched for:
While the GS2596 is rated for 40–90 engine horsepower, its 96-inch width and 917-pound operating weight make it best suited for utility tractors with the weight, wheelbase, and traction needed to fully utilize its capabilities. For most MX Series tractors, the GS2572 or GS2584 is generally the better match, while the GS2596 shines behind the larger M Series tractors.
| Specification | GS2596 |
|---|---|
| Working Width | 96 inches |
| Overall Width | 102¼ inches |
| Tractor Requirement | 40–90 Engine HP |
| Hitch | Category I & II 3-Point |
| Quick Hitch Compatible | Category I & II |
| Number of Scarifier Shanks | 8 |
| Unit Weight | 917 lbs. |
| Overall Length | 56½ inches |
| Overall Height | 34 9/16 inches |
| Side Panel Height | 14⅝ inches |
| Side Panel Thickness | ¼-inch Steel with Formed Edges |
| Main Frame | 4″ × 4″ × 5/16″ Reinforced Heavy-Wall Tubing |
| Rear Beam | 3″ × 3″ × 3/16″ Heavy-Wall Tubing |
| Skid Shoes | Replaceable & Reversible High-Carbon Steel |
| Grader Blades | Two ½” × 6″ Reversible Heat-Treated High-Carbon Steel |
| Blade Adjustment | Infinite Adjustment to 1½” Below Grade |
| Scarifier Adjustment | Four Positions |
If you maintain large ranches, county roads, commercial properties, or miles of gravel roadway, the Land Pride GS2596 delivers maximum productivity with fewer passes than any other grading scraper in the lineup. Its extra-wide 96-inch cutting path, heavy-duty frame, and eight scarifier shanks make quick work of washboards, potholes, and uneven gravel while producing a smooth, professionally finished surface. When paired with a Kubota M5660SU, M6060, M5, or M6 Series tractor, the GS2596 provides the durability, efficiency, and grading performance needed for the toughest road maintenance jobs.
