Includes Freight and Prep
Delivery within 100 Miles
INCLUDED IN THE PRICE:
*Cash Price
**Based on Finance Price
Sales tax not included
| Engine — Gross HP | 37.0 hp |
| PTO HP | 28.0 hp (540 rpm) |
| Transmission | iHST+ Hydrostatic — 3-range |
| Hydraulic Flow | 8.0 gpm |
| 3-Point Hitch | Category I |
| 3-Pt Lift Capacity |
3,750 lbs @ ball ends 2,650 lbs @ 24" behind hitch |
| Loader Compatibility | LA806 Performance-Matched Loader |
| Overall Width | 59.8 in |
| Wheelbase | 71.1 in |
| Overall Length | 115.9 in |
| Ground Clearance | 14.2 in |
| Fuel Capacity | 13.5 gal |
| Operating Weight (ROPS) | 3,726 lbs |
| Operating Weight (Cab) | 4,034 lbs |
| Operator Station | ROPS (DLX) or Optional Cab (DLXC) |
| Optional Features |

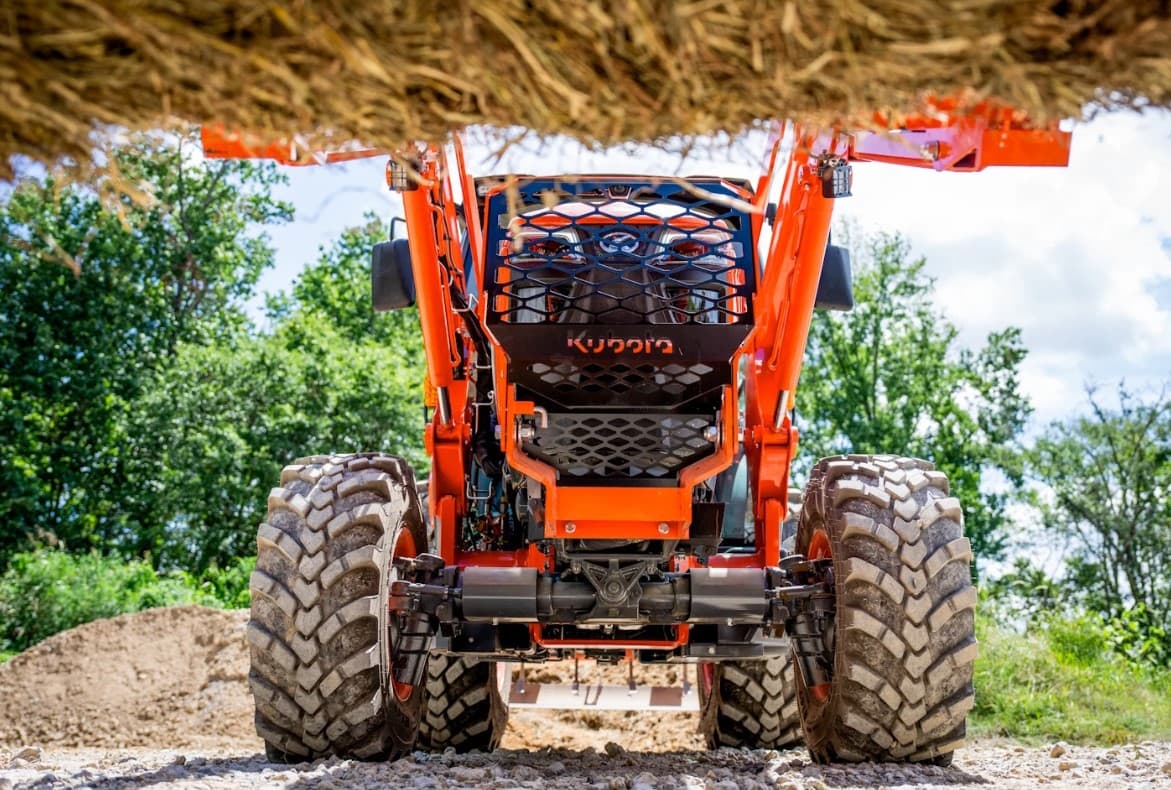

• 3rd Function Hydraulics • Vinyl Air-Ride Seat (ROPS) • Air-Ride or Heated Air-Ride Seat (Cab) • Brush Guard • DLXC Cab Version |
The Grand L70 Series comes in two trim levels: Deluxe (DLX) and Premium (PRM). Each trim is available in ROPS and Cab versions, with the Premium Cab offering a Cold Weather Package. Below is the accurate feature breakdown for the L3770 / L3970 / L4270 / L4470 model families.
The DLX models (L3770 & L4270) deliver the core Grand L platform with LED lighting, optional 3rd function, operator ergonomics improvements, and the ability to add Vinyl Air-Ride (ROPS) or Air-Ride / Heated Air-Ride (Cab).
The Premium models (L3970 & L4470) add the multi-function joystick, upgraded electronics, optional cameras, optional under-boom LEDs (shared with DLX), and expanded cab comfort features. MSL loader systems remain exclusive to the L5070 & L6070.
At Ravenscraft Implement, we stock a wide selection of Land Pride implements ready to pair with your new Kubota tractor-from box blades and rotary cutters to quick hitches and grading tools. These are just a few of the options available, and we can easily custom-build a package to match your property needs while still qualifying for Kubota’s special financing and package programs. Our goal is to help you find the perfect tools to work your ground — efficiently, affordably, and locally.
“Ravenscraft Implement made buying my tractor simple. Straight answers and fast delivery.”
“Great people. They went through every detail of the Grand L and made the process easy.”
“Delivered to my property right on time. Excellent experience from start to finish.”
Delivery available within 100 miles of Whitewater, KS.

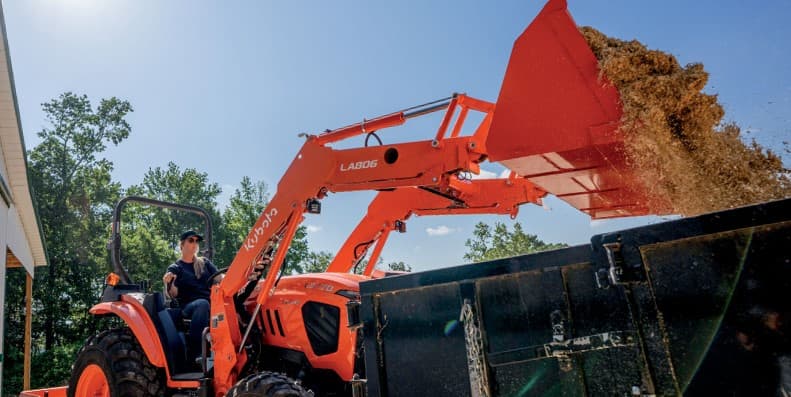

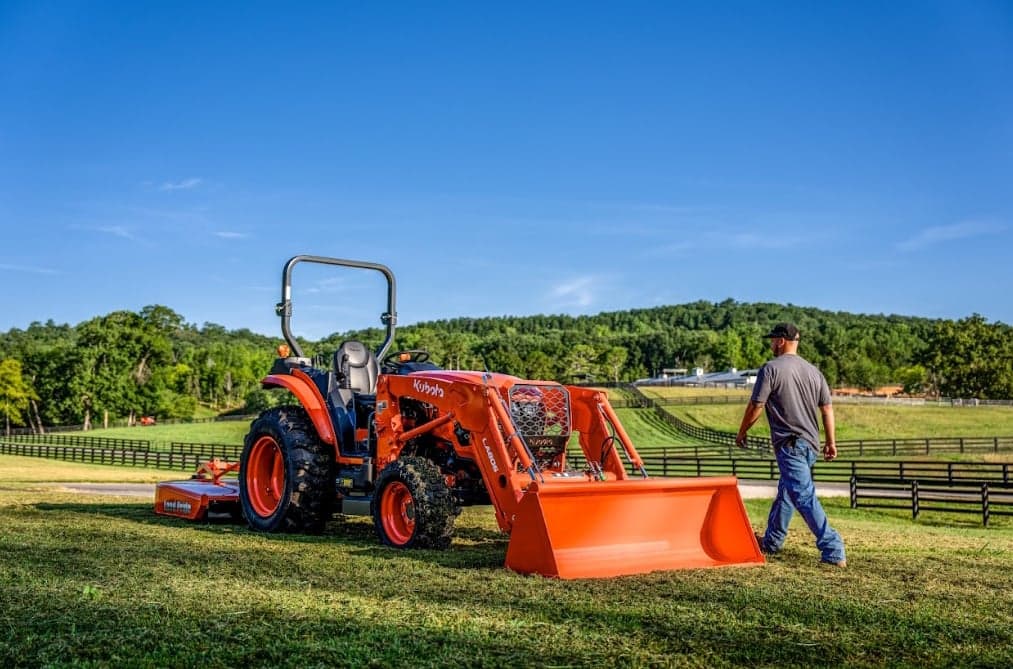

| Loader Model | LA806 (Performance-Matched) |
| Maximum Lift Height (pivot pin) | 105.4 in (2,677 mm) |
| Lift Capacity (pivot pin, max height) | 1,726 lbs |
| Lift Capacity (500 mm forward) | 1,350–1,420 lbs |
| Breakout Force | Approx. 3,634 lbs |
| Reach at Ground Level | 74.2 in |
| Maximum Dump Angle | 55° |
| Maximum Rollback Angle | 40.6° |
| Raise Time (full height) | 3.9 – 4.2 sec |
| Lowering Time | 3.0 – 3.4 sec |
| Dump Time | 2.2 – 2.5 sec |
| Rollback Time | 2.1 – 2.4 sec |
| Bucket Width | 72" Heavy-Duty |
| Bucket Capacity (heaped) | 0.44 cu. yd. |
| Quick-Attach | Standard 2-Lever (Skid Steer Style) |
| Hydraulic Line Routing | Tucked under boom for improved visibility |
| Loader Removal | Tool-less with integrated parking stands |
| Optional Features |
• 3rd-Function Valve • Under-Boom LED Work Lights • Dual-Function Loader Valve |
| Approx Loader Weight | ~ 780–820 lbs |
