Kubota L2502 Tractor and Loader
Payments As Low as $355.63**
Includes Freight and Prep Delivery within 100 Miles
*Cash Price **Based on Finance Price
Sales tax not included
Kubota L2502 Tractor & Loader Highlights
Explore the Kubota L2502 tractor, the dependable
LA526 front loader, simple hydrostatic transmission,
operator comfort features, and the wide range of Land Pride implements
commonly paired with this reliable compact utility tractor. The L2502 is typically equipped
with R1 agricultural tires as standard equipment, giving property owners
strong traction for grading, pasture work, and field conditions.

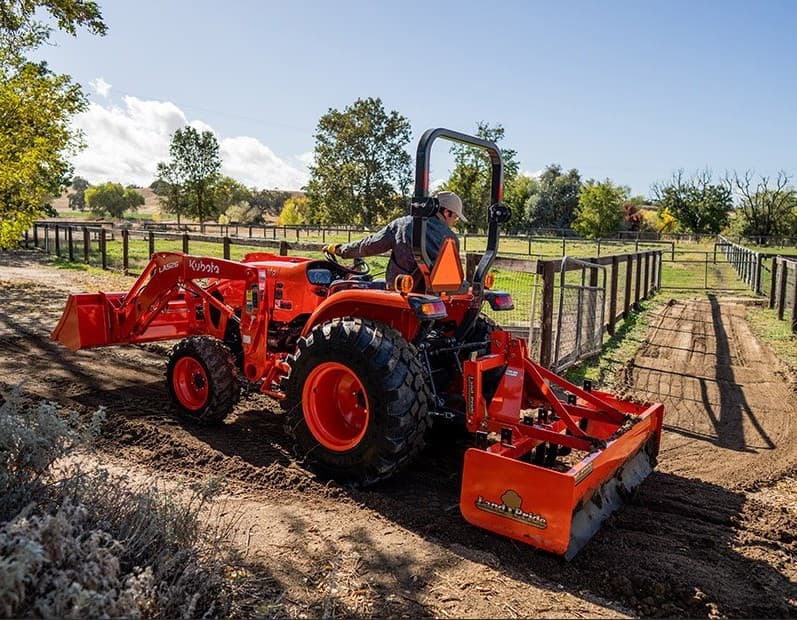

Kubota L2502 Tractor & LA526 Loader
A dependable compact utility tractor designed for property maintenance, livestock chores, and acreage work.
Tractor
Loader
Hydrostat
Quick Attach
Tires
Cockpit
Land Pride
The Kubota L2502 continues Kubota’s reputation for simple,
reliable compact tractors. With strong loader performance, easy operation,
standard R1 ag tires, and compatibility with a wide range of
Land Pride implements, it is a proven choice for acreage owners,
livestock operations, and property maintenance.
Why Buy the Kubota L2502 HST Tractor & Loader
The Kubota L2502 HST is built on the same rugged
Standard L-Series chassis as the L3302 and L3902,
but powered by a simple 24.8 HP mechanical diesel engine.
You get the same platform strength and loader capability — without the
added complexity of emissions after-treatment systems.
The base tractor configuration includes R1 agricultural tires
for strong traction in loader work and rural property conditions.
Simple Non-Emissions Diesel Design
+
The L2502 uses a mechanical diesel engine under 25 horsepower,
which means no diesel particulate filter (DPF), no regeneration cycles,
and no DEF fluid. Fewer emissions components means simpler operation,
fewer sensors, and straightforward long-term ownership.
Same LA526 Loader as the L3302 & L3902
+
The Kubota LA526 front loader used on the L2502 is the same
loader installed on the larger L3302 and L3902 tractors.
That means the same rated lift capacity and breakout force for gravel,
dirt, manure, pallets, and property work — even with the smaller engine model.
Heavy Standard L-Series Frame
+
The L2502 shares the same Standard L-Series chassis
as the larger L02 tractors, including a heavy drivetrain and
cast iron rear housing. This gives the tractor real
stability and traction during loader work and ground-engaging tasks.
Ideal for 2–15 Acre Properties
+
With enough PTO power for 5-foot rotary cutters,
driveway grading tools, and general loader work,
the L2502 is a great match for acreage maintenance while still
remaining maneuverable around barns, buildings, and trees.
Smooth 3-Range Hydrostatic Operation
+
The 3-range hydrostatic transmission makes direction
changes and loader work simple. Just press the pedal to move —
no clutching or gear shifting required.
Backed by Ravenscraft Implement Since 1962
+
When you purchase from Ravenscraft Implement,
you get local parts support, experienced service technicians,
financing assistance, and delivery within 100 miles of Whitewater, Kansas.
Welcome to Ravenscraft Implement
In Business Since 1962
At Ravenscraft Implement, we stock a wide selection of Land Pride implements
ready to pair with your new Kubota tractor — from box blades and rotary cutters to quick hitches,
grading tools, and more. These are just a few of the options available, and we can easily
custom-build a package to match your property needs while still qualifying for
Kubota’s special financing and package programs. Our goal is to help you find the
right tools to work your ground efficiently, affordably, and locally.
What Customers Say About Ravenscraft Implement
Customers across south central Kansas count on Ravenscraft Implement for straightforward service,
knowledgeable help, and equipment that is ready to work. Here are a few of the things customers say about buying from us.
★★★★★
“Straightforward deal and great support.” The tractor has been perfect for driveway work and loader projects.
— Kevin H., Wichita, KS
★★★★★
“Honest dealership. Easy to work with.” They helped us choose the right tires and ballast for loader use.
— Randy M., Newton, KS
★★★★★
“Friendly people and very knowledgeable.” Delivery was easy and the tractor was ready to work.
— Patty True
Average Rating:
★★★★★
4.9/5
Based on published customer reviews
Kubota L2502 HST Tractor Specifications
Engine
+
Engine Model: Kubota D1703-M-DI
Engine Type: 3-Cylinder Liquid-Cooled Diesel
Displacement: 100.5 cu. in. (1.647 L)
Gross Engine Horsepower: 24.8 HP
Fuel System: Mechanical Indirect Injection (IDI)
Emissions System: No DEF / No DPF Exhaust Filter
Transmission
+
Transmission Type: 3-Range Hydrostatic (HST)
Drive System: 4WD Mechanical Front Wheel Drive
Power Steering: Hydrostatic Power Steering
Differential Lock: Standard
PTO
+
Rear PTO Type: Independent
Rear PTO Speed: 540 RPM
PTO Horsepower: 19.5 HP
Hydraulics
+
Total Hydraulic Flow: 8.3 GPM
Steering Flow: 4.7 GPM
Implement Flow: 3.6 GPM
Rear Remote Valves: Optional
3-Point Hitch
+
Hitch Category: Category I
Lift Capacity at Lift Point: 1,918 lbs
Lift Capacity at 24 in. Behind: 1,430 lbs
Position Control: Standard
Dimensions & Weight
+
Wheelbase: 63.3 in.
Overall Length: 110.6 in.
Overall Width: Approx. 55.1 in.
Operating Weight: Approx. 2,601 lbs.
Ready to Get Your Kubota L2502 HST Tractor & Loader?
Contact Ravenscraft Implement today for current availability,
financing options, and help matching the L2502 with the right
attachments for your property.
Cash Price: $25,050
Payments As Low As: $355.63**
Freight and prep included • Delivery within 100 miles of Whitewater, KS
*Cash price. **Based on finance price. Sales tax not included.
Ravenscraft Implement • 223 S. Main St. • Whitewater, KS 67154 •
(316) 799-2141
Serving Wichita • Newton • El Dorado • Hutchinson • and surrounding Kansas communities since 1962
L2502 Tractor & Loader FAQ
Common questions we hear from Kansas property owners shopping the Kubota L2502 Tractor and Loader.
What’s included in the L2502 Tractor and Loader price?
+
This package includes the Kubota L2502 HST tractor, LA526 front loader,
skid steer quick attach bucket, and Ag tires.
Freight and prep are included, and delivery is available within
100 miles of Whitewater, KS.
Can I customize this tractor with additional implements?
+
Yes. The L2502 features a
Category I three-point hitch and
540 RPM rear PTO, making it compatible with box blades, rotary cutters,
rear blades, tillers, and more. You can explore common setups using our
Build Your Own Kubota
tool.
Is the L2502 a good choice for residential and acreage properties?
+
Yes. The L2502 is well suited for 5–25 acre properties.
It offers more stability and loader capacity than sub-compact models,
while remaining easy to operate around buildings, driveways, and open land.
What type of work is the LA526 loader best suited for?
+
The LA526 loader is designed for moving dirt, gravel, mulch, hay,
firewood, and general material handling. It’s ideal for property
maintenance and farm chores rather than heavy commercial construction.
Do I need ballast when using the front loader?
+
Yes. Proper ballast improves stability, steering, and safety
during loader operation. Options include loaded rear tires or a rear
implement such as a box blade. We’ll help you choose the safest setup.
What’s the difference between this tractor and an L2502 Package Deal?
+
This page shows the L2502 with loader only. An
L2502 Package Deal
typically adds mowing and rear implements based on how you plan to use the tractor,
giving you a more complete ready-to-work setup.
Can you deliver to Wichita, Newton, El Dorado, or Hutchinson?
+
Yes. Delivery within 100 miles of Whitewater, KS commonly includes Wichita,
Newton, El Dorado, Hutchinson, and surrounding Kansas communities.
Contact us to confirm timing and delivery details.
Is this an exact out-the-door price?
+
Yes. Aside from applicable sales tax, the price shown on this page
represents the out-the-door cost of the L2502 Tractor and Loader.
Freight and prep are already included. We’ll always confirm final numbers
with your ZIP code and exact configuration before delivery.
