Land Pride BB1266 66″ Box Blade

Cash Price $1,225 or $17.89 per mo

Land Pride BB1566 Box Scraper – 66″ Box Blade

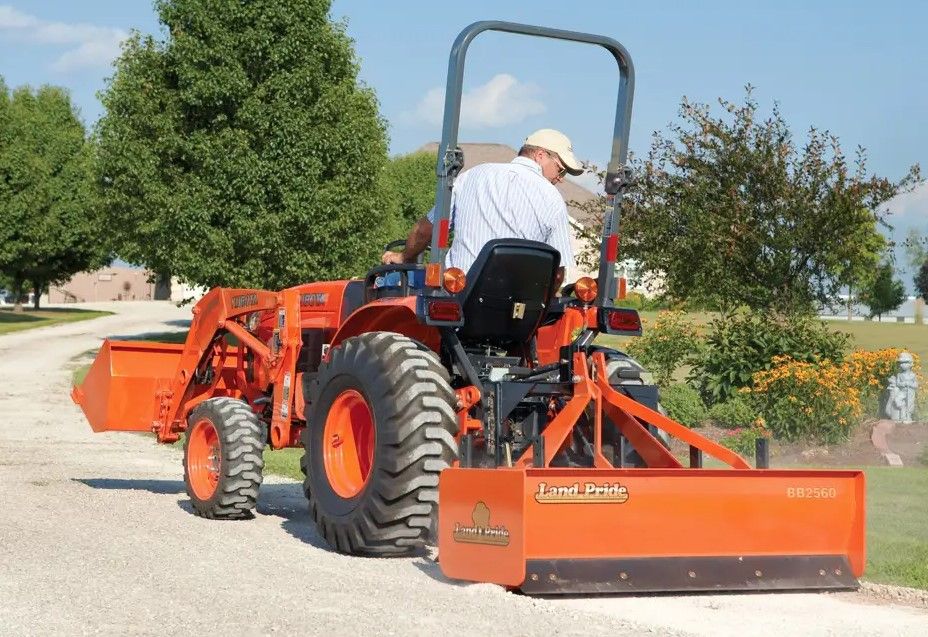

Take on bigger grading projects with confidence using the Land Pride BB1566 Box Scraper. Designed for compact and utility tractors from 17 to 40 horsepower, this rugged 66-inch box blade is built for serious driveway maintenance, site preparation, landscaping, arena grooming, and property improvement. Its 66-inch working width is an excellent match for many Kubota B, LX, and L Series tractors, providing enough coverage to smooth tire tracks in a single pass while offering the weight and strength needed to cut into packed gravel and hard soil. Five adjustable heat-treated scarifier shanks break up compacted material before the reversible cutting edges level and redistribute it into a smooth, professional finish. Whether you’re maintaining a long gravel driveway, preparing a building site, or reclaiming rough ground, the BB1566 combines Land Pride durability with outstanding grading performance to help you complete the job faster and with less effort.

Fits

  • Kubota B Series
  • Kubota LX Series
  • Kubota L Series
  • Other compact and utility tractors from 17–40 horsepower
  • Category I 3-Point Hitch
  • Category I Quick Hitch Compatible

Key Features

  • 66-inch working width
  • Five adjustable heat-treated spring steel scarifier shanks
  • Heat-treated, reversible, replaceable cutting edges for long service life
  • Heavy-duty 17-inch roll-formed moldboard improves material flow and reduces drag
  • Rear backfill blade for smoothing while backing up
  • Heavy 4″ × 4″ reinforced square shank beam for superior strength
  • Category I Quick Hitch compatible
  • 450-pound operating weight for excellent penetration and grading performance
  • 13.4 cubic foot capacity moves more material with every pass

Ideal Applications

  • Gravel driveway construction and maintenance
  • Building pad preparation
  • Finish grading and landscaping
  • Horse arena maintenance
  • Food plots and garden preparation
  • Repairing washouts and potholes
  • Spreading gravel, topsoil, mulch, and other loose materials

Important

The BB1566 is designed for tractors up to 40 horsepower and is an excellent choice for Kubota B, LX, and L Series tractors needing a heavier-duty box scraper. Its 66-inch width provides an ideal balance between productivity and pulling power, while the reinforced frame, replaceable scarifier tips, and reversible cutting edges are built to withstand years of demanding property maintenance.

Owners Manual
