Includes Freight and Prep
Delivery within 100 Miles
INCLUDED IN THE PACKAGE:
*Cash Price
**Based on Finance Price
Sales tax not included

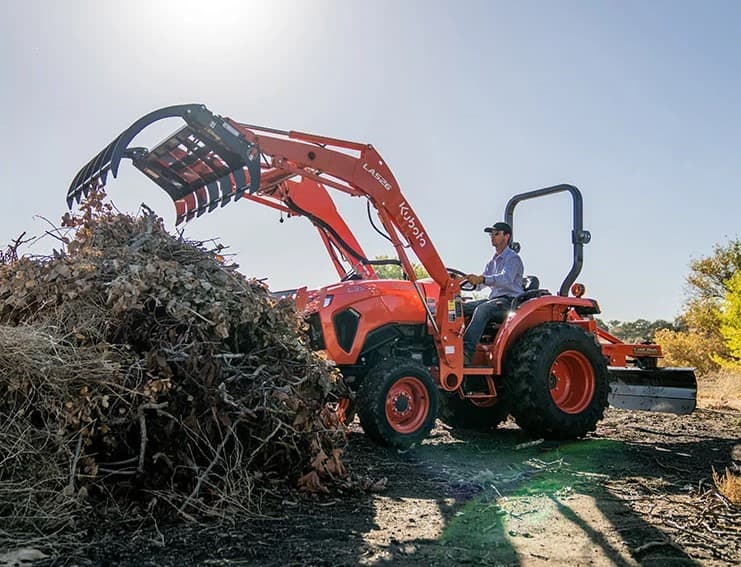

The Kubota L3902HST is a compact utility tractor designed for owners who need maximum horsepower, stability, and loader performance for acreage maintenance, grading, material handling, and property work across Kansas. Paired with the LA526 loader and skid steer quick attach, it’s built to work hard every day.
The L3902’s 39 HP Kubota diesel engine delivers strong torque for heavy mowing, loader work, and pulling ground-engaging implements. It’s an ideal choice for owners who want extra power without stepping up to a much larger tractor.
The Kubota LA526 front loader is performance-matched to the L3902 chassis, providing smooth hydraulics and strong lift capacity. It’s well suited for moving dirt, gravel, mulch, hay, firewood, and general material handling around larger properties.

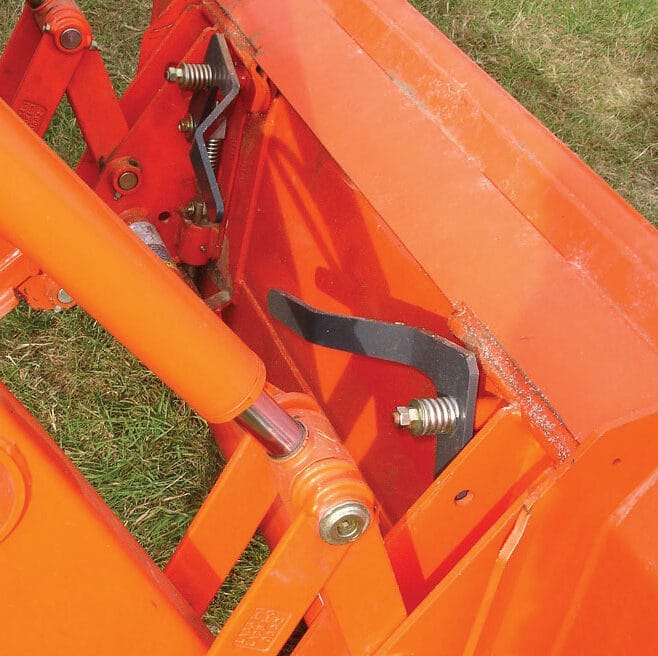

The included skid steer quick attach (SSQA) makes it easy to switch between buckets, pallet forks, grapples, snow pushers, and other loader attachments. SSQA is a must-have for owners who want their tractor to handle a wide range of jobs.
The 3-range hydrostatic transmission provides smooth, clutch-free operation, making the L3902 easy to run for operators of all experience levels. It’s especially helpful for loader work, tight spaces, and frequent forward/reverse operation.
This setup includes Agricultural (Ag) tires, which offer maximum traction in soil,
pasture, and field conditions. Ag tires excel at ground-engaging work such as grading,
dirt moving, and pulling implements where traction is critical.
R4 industrial tires are available as an option for owners who want a tougher,
longer-wearing tire that’s easier on turf and gravel.
R4s are popular for properties that see a mix of driveway maintenance, lawn care,
and frequent loader use.
The L3902’s heavier frame and wider stance provide added stability during loader work and operation on uneven terrain. With proper rear ballast, you’ll notice improved confidence when lifting and carrying heavier loads.
Bottom Line: The Kubota L3902 Tractor & Loader is a strong choice for Kansas owners who want maximum horsepower in a compact utility tractor with easy operation, excellent loader capability, and long-term reliability backed by Ravenscraft Implement.
The Kubota L3902 is a compact utility 4WD diesel tractor built for owners who want additional horsepower and weight for heavier loader work, mowing larger acreages, and demanding property maintenance tasks. (This section covers the tractor only — loader specs are listed separately.)
| Tractor Model | Kubota L3902HST |
|---|---|
| Engine Type | Kubota 3-Cylinder, Liquid-Cooled Diesel |
| Gross Engine Power | 39.0 HP (approx.) |
| PTO Power | ~32 HP (HST, approximate) |
| Transmission | 3-Range Hydrostatic (HST) |
| Drive Type | 4WD with Differential Lock |
| Rear PTO | 540 RPM |
| 3-Point Hitch | Category I |
| Fuel Tank Capacity | ~10 gal (approx.) |
| Operating Weight (Tractor Only) | ~2,900–3,000 lbs (approx., varies by configuration) |
| Availability | In Stock — Whitewater, KS |
*Specifications may vary by configuration. Horsepower, weight, and capacities shown are approximate. Confirm exact configuration, tire selection, and current Kubota programs at the time of quote.
Great for: Heavier loader work • Rotary cutting larger acreage • Driveway and arena maintenance • Grading and dirt work • Property owners who want extra power and stability without moving into a full utility tractor
Cash Price: $31,600 • Payments As Low As $448.18** • Financing Available
Delivery Within 100 Miles of Whitewater, KS
Call, text, email, or explore Kubota options with our team today.
*Cash price. **Based on finance price. Sales tax not included.
Ravenscraft Implement • 223 S. Main St. • Whitewater, KS 67154 • (316) 799-2141
Serving Wichita • Newton • El Dorado • Hutchinson • and surrounding Kansas communities since 1962
Common questions we hear from Kansas property owners shopping the Kubota L3902 tractor with front loader.
This page features the Kubota L3902HST tractor equipped with Ag tires, the LA526 front loader with skid steer quick attach bucket, freight, and dealer prep. Delivery is available within 100 miles of Whitewater, KS (ask for details).
The L3902 is ideal for 10–75 acre properties that need more horsepower and weight for loader work, rotary cutting, driveway maintenance, grading, and general acreage chores. It’s a popular choice for owners who want more capability without stepping up to a full-size utility tractor.
Yes. Ag tires are standard on this setup and provide maximum traction for soil work, dirt moving, and field conditions. R4 industrial tires are available as an option if you prefer a more durable tire for gravel, pavement, and mixed-use properties. We’ll help you choose the best tire for how you plan to use the tractor.
Absolutely. The L3902 supports a wide range of Land Pride rear implements including box blades, rotary cutters, grading scrapers, and tillers. If you already know what tools you want, our Build Your Own Kubota tool is a great place to start.
Yes. The LA526 loader includes a skid steer style quick attach as standard equipment, allowing you to easily use buckets, pallet forks, grapples, and other compatible loader attachments.
Yes. Delivery within 100 miles of Whitewater, KS commonly includes Wichita, Newton, El Dorado, Hutchinson, and surrounding Kansas communities. Contact us to confirm timing and delivery details.
Yes. Aside from applicable sales tax, the price shown reflects your out-the-door cost including freight and dealer prep. Any optional changes will be discussed and confirmed before finalizing your quote.
At Ravenscraft Implement, we stock a wide selection of Land Pride implements ready to pair with your new Kubota tractor. From box blades and rotary cutters to quick hitches and grading tools. These are just a few of the options available, and we can easily custom-build a package to match your property needs while still qualifying for Kubota’s special financing and package programs. Our goal is to help you find the perfect tools to work your ground — efficiently, affordably, and locally.
“The L3902 has more than enough power for what we do.” Handles loader work and grading our driveway with ease.
“Kelly and Dan were great to work with.” Straightforward pricing and they explained tires, ballast, and implements.
“Friendly, local dealership that stands behind what they sell.” The L3902 has been perfect for our acreage projects.
Average Rating:
★★★★★
(4.9/5)
Based on published customer reviews
The Kubota LA526 front loader is performance-matched to the L3902HST tractor for reliable lift capacity, smooth hydraulics, and everyday material handling on Kansas acreage properties. (This section covers the loader only — tractor specs are separate.)
| Loader Model | Kubota LA526 Front Loader w/ Skid Steer QA Bucket |
|---|---|
| Compatible Tractors | Kubota L2502, L3302, L3902 (L02 Series) |
| Maximum Lift Height @ Pivot Pin | 94.3" (2,394 mm) |
| Clearance w/ Attachment Dumped | 74.6" (1,896 mm) |
| Reach @ Maximum Height | 24.5" (622 mm) |
| Reach @ Ground Level | 66.1" (1,679 mm) |
| Maximum Dump Angle | 40° |
| Maximum Rollback Angle | 31° |
| Digging Depth (Below Grade) | 7.0" (178 mm) |
| Overall Height in Carry Position | 51.3" (1,302 mm) |
| Lift Capacity @ Pivot Pin | 1,144 lbs (519 kg) at max height |
| Lift Capacity @ 500 mm (19.7") Forward | 864 lbs (392 kg) at max height |
| Quick Attach Type | Skid Steer Quick Attach (SSQA) bucket on this setup |
| Typical Bucket Width | Commonly a 60" material bucket (confirm at quote time) |
*Capacities are from Kubota loader specifications and assume proper ballast and tractor configuration. Always confirm exact loader and bucket combination at the time of quote.
Great for: Gravel driveways • Dirt work • Mulch and manure • Snow removal • Pallet forks & grapples
