Includes Freight Prep and
Delivery within 100 Miles
INCLUDED IN THE PACKAGE:
*Cash Price
**Based on Finance Price
Sales tax not included
Implements Below Included In Package
Factory installed at Ravenscraft Implement — ready for work the same day you get it home.
Swap implements like the cutter or box blade in seconds — stay in the seat, keep productivity high.
Perfect match for Kubota L02-Series tractors — built for 24–39 HP performance.
Hook, latch, and go — no more wrestling with 3-point pins or uneven ground.

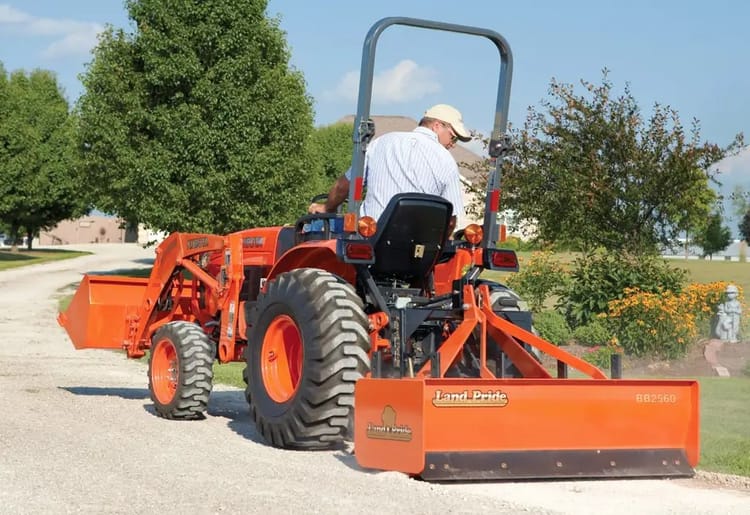

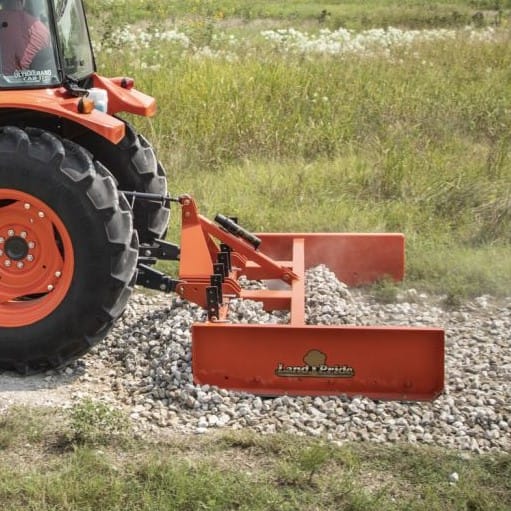

Set up and ready to manage acreage driveways, pads, and gravel lots.

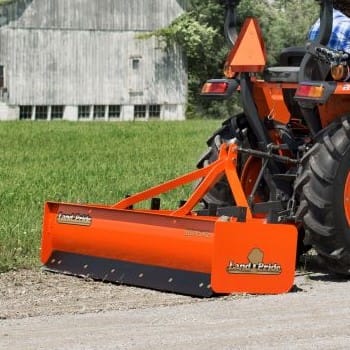

Fix potholes, level washouts, and smooth surfaces for a great finish on your property.
Rips through Kansas clay and compacted soil before leveling.
Built to take on long-term gravel lane and pasture maintenance — season after season.

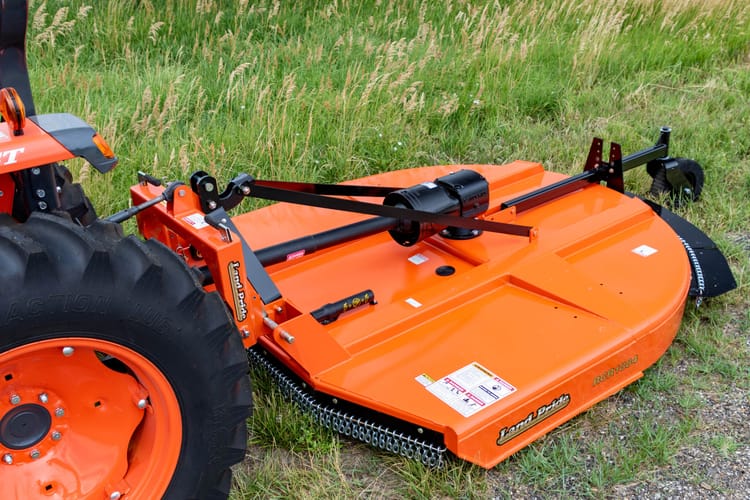

Ready to keep pastures, ditches, and fence lines clean from day one.
Easily handles tall pasture grass and light brush around ponds and waterways.
Protects your cutter and PTO when encountering obstacles like rocks and stumps.
Long-lasting performance — even in rough brush and weed growth.
⭐⭐⭐⭐⭐ 4.9/5 — Based on Google customer reviews
“Excellent buying experience. Friendly staff and smooth delivery!”— Chris, Wichita KS
“They helped me pick the right Kubota package for our acreage.”— Megan, Newton KS
“Loader performance is excellent, and financing was a breeze.”— Aaron, Andover KS
“Love our new tractor — they delivered right to our gate!”— Jessica, Valley Center KS
The Kubota L3302 HST is a 33-horsepower compact utility tractor engineered for durability and versatility. With its smooth 3-range hydrostatic transmission, heavy-duty 4WD drivetrain, and precision-built Kubota diesel engine, it’s ideal for loader work, mowing, grading, and acreage management across Kansas.
| Tractor Model | Kubota L3302 HST (Compact Utility Tractor) |
|---|---|
| Engine Model | Kubota D1803 3-Cylinder Diesel |
| Gross Engine Power | 33.0 HP (24.6 kW) |
| PTO Power | ≈ 27 HP (20.1 kW) |
| Transmission | 3-Range Hydrostatic Drive (HST) |
| Drive Type | 4WD Standard |
| Rear 3-Point Lift Capacity (24” Behind Lift Point) | ≈ 1,900 lb (862 kg) |
| Hydraulic Flow (Total) | 8.3 GPM (total) / 4.7 GPM (implement) / 3.6 GPM (steering) |
| Wheelbase | 63.3 in (1,608 mm) |
| Ground Clearance | 13.6 in (345 mm) |
| Operating Weight (w/o Loader) | ≈ 2,645 lb (1,200 kg) |
| Fuel Tank Capacity | 10.0 gal (37.9 L) |
| Tire Options | Ag R1 (Standard) • Industrial R4 • Turf R3 |
| Compatible Loader | Kubota LA526 Front Loader (66″ Quick-Attach Bucket) |
| Implements Included | Land Pride QH16 Quick Hitch • BB1260 Box Blade • RCR1260 Rotary Cutter |
| Warranty Coverage | Kubota Limited Powertrain Warranty — 6 Years or 2,000 Hours (Whichever Comes First) |
| Package Cash Price | $31,235 * |
| Availability | In Stock — Whitewater, Kansas |
Great For: Loader work • Driveway grading • Rotary cutting • Landscaping • Acreage maintenance
*Pricing subject to change — Kubota financing available with approved credit.
The Kubota LA526 front loader is engineered for the L2502, L3302, and L3902 tractors — offering powerful lift, smooth operation, and reliable quick-attach versatility for property and farm use across Kansas.
| Loader Model | LA526 Front Loader |
|---|---|
| Maximum Lift Height (to Pivot Pin) | 94.3 in (2,394 mm) |
| Clearance with Attachment Dumped | 74.6 in (1,896 mm) |
| Reach at Maximum Height (Dump) | 24.5 in (622 mm) |
| Maximum Dump Angle | 40 degrees |
| Reach with Bucket on Ground | 66.1 in (1,679 mm) |
| Bucket Rollback Angle (Ground Level) | 31 degrees |
| Digging Depth | 7.0 in (178 mm) |
| Lift Capacity (Pivot Pin @ Max Height) | 1,144 lb (519 kg) |
| Lift Capacity (500 mm Forward) | 864 lb (392 kg) |
| Breakout Force (Pivot Pin) | 2,350 lb (1,066 kg) |
| Bucket Width | 66″ Standard Quick-Attach |

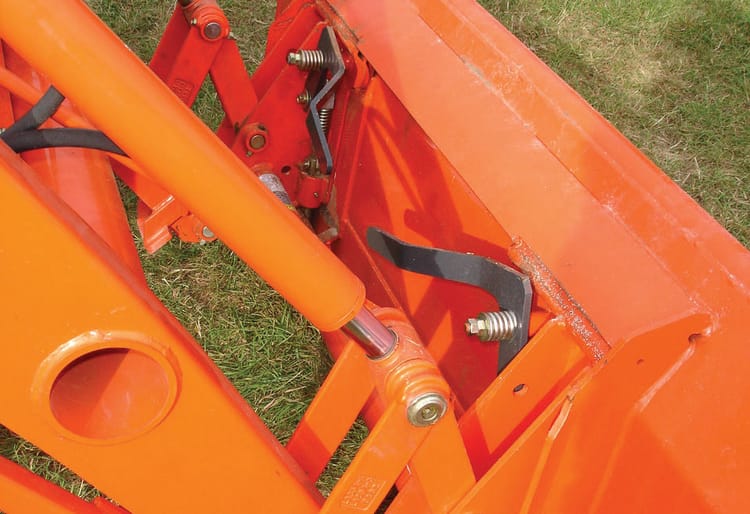

| Quick-Attach Compatibility | Skid-Steer-Style QA (Standard) |
| Compatible Tractors | Kubota L2502 • L3302 • L3902 |
| Warranty Coverage | Kubota Loader Limited Warranty — 2 Years or 1,000 Hours |
Great For: Material handling • Gravel loading • Landscaping • Farm chores • General property work
*All performance values based on standard configuration; may vary by tire type and ballast.
This package includes the Kubota LA526 loader with QA bucket, Land Pride QH16 Quick Hitch, BB1260 Box Blade, and RCR1260 Rotary Cutter — fully installed and ready to work.
Yes — the 3-range HST transmission and 4WD system make this tractor ideal for loader work, mowing, grading, and general 3–30 acre property management.
Yes — Kubota financing is available with approved credit. Delivery is available within 100 miles of Whitewater, Kansas. Call 316-799-2141 or text 316-841-3423.
Kubota L-Series tractors include a 6-Year Powertrain Warranty — fully supported by Ravenscraft Implement’s service department.
Absolutely — this tractor supports a full range of Land Pride and Kubota implements, and we can custom-build a package with financing eligibility.
Cash Price: $31,235 • Financing Available • Delivery Within 100 Miles of Whitewater KS
Call, email, or build your custom Kubota package with our team today.
Ravenscraft Implement • 223 S. Main St. • Whitewater KS 67154 • (316) 799-2141
Serving Wichita • Newton • El Dorado • Hutchinson • and surrounding Kansas counties since 1962
