Kubota B2301 Tractor Package

Kubota B2301 Tractor Package Price $23,015*

Payments As Low as $326.88

Includes Freight and Prep
Delivery within 100 Miles

*Cash Price
**Based on Finance Price
Sales tax not included

What’s Included in The B2301 Package

Kubota B2301 23 HP Compact Tractor +
Features:
  • 23 HP Kubota 3-cylinder diesel engine
  • No DPF • No DEF emissions system
  • Compact tractor footprint with real Category 1 capability
  • Power steering and 4WD for confident control
  • Ideal size for 2–20 acre properties

Kubota B2601 tractor with loader and implements

Hydrostatic Transmission (HST) +

The Kubota hydrostatic transmission gives you smooth, clutch-free control with simple forward and reverse pedal operation — ideal for loader work, close-quarters maneuvering, and frequent speed changes.

Why HST Works So Well for Acreage Owners:
  • 3-range hydrostatic transmission (Low / Medium / High)
  • Foot-controlled forward and reverse — minimal clutch use
  • Excellent low-speed control for loader and grading work
  • Easy for new tractor owners to learn and feel comfortable with
  • Perfect for jobs that require constant direction changes

Kubota B2601 hydrostatic transmission controls and operator cockpit

Kubota LA435 Front Loader with QA Bucket +
Features:
  • Matched to the B2601 for balance and performance
  • Up to ~948 lb lift capacity at the pivot pin
  • Curved boom design for better visibility from the seat
  • Single-lever joystick control for smooth loader operation
  • Quick-detach loader with built-in parking stands

Kubota LA435 front loader on B2601 tractor

Skid Steer Quick Attach (SSQA) +

The skid steer quick attach (SSQA) system lets you change front loader attachments in minutes — without tools. It’s one of the biggest long-term versatility upgrades you can have on a compact tractor.

SSQA Advantages:
  • Industry-standard skid steer style quick-attach
  • Swap between bucket, pallet forks, snow blade, or grapple quickly
  • Compatible with a wide range of skid-steer style attachments
  • Future-proofs the tractor as your property needs grow
  • No loose pins or tools needed for attachment changes

Kubota skid steer quick attach system on front loader

Land Pride QH05 Category 1 Quick Hitch +
Features:
  • Category 1 quick hitch sized for BX & B Series tractors
  • Makes rear implement changes faster and easier
  • Reduces lifting and wrestling with 3-point arms
  • Works with compatible Land Pride and matched implements

Land Pride QH05 quick hitch

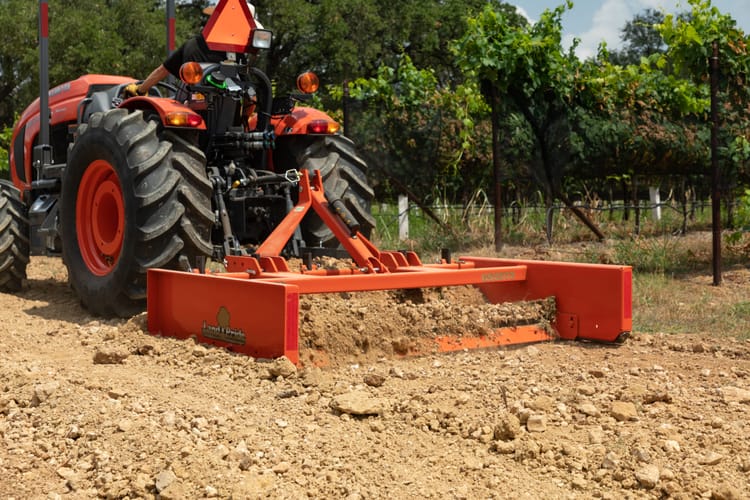

Land Pride BB1260 60" Box Blade +
Features:
  • 60" working width matched to the B2601
  • Scarifier shanks for breaking hard-packed gravel and clay
  • Dual cutting edges for forward and reverse grading
  • Great for driveways, lanes, building pads, and yard repair

Land Pride BB1260 box blade behind compact tractor

**

Kubota B2301 tractor with loader and implements
Kubota B2601 tractor with loader and implements Kubota B2601 hydrostatic transmission and operator platform Kubota LA435 front loader mounted on B2601 Kubota skid steer quick attach system on front loader Land Pride QH05 Category 1 quick hitch Land Pride BB1260 60 inch box blade

Kubota B2301 Tractor Specifications

Key operating specs, engine details, PTO, hydraulics, and dimensions for the Kubota B2301 — neat and easy to scan.

Engine & Performance +
  • Model: Kubota D902 (diesel)
  • Gross Engine Power: 23.0 HP
  • Engine Type: 3-cyl, liquid-cooled diesel
  • Displacement: ~898 cc
  • Fuel Capacity: ~8.3 gallons (approx)
Transmission & Drive +
  • Transmission: Hydrostatic (HST)
  • Drive: 4-WD with differential lock
  • Steering: Hydrostatic power steering
PTO & Implement Power +
  • PTO Type: Independent Rear PTO
  • PTO Power (Rated): ~19.4 HP
  • PTO Speed: 540 RPM
Hydraulics +
  • Hydraulic System: Open center
  • Hydraulic Pump Flow: ~6.9 GPM
  • 3-Point Hitch: Category I
  • Lift Capacity @ 24" Behind Pins: ~1,102 lbs
Brakes, Steering, & Tires +
  • Brakes: Wet disc brakes
  • Steering: Hydrostatic power steering
  • Tires (Standard):
    • Front: Turf / Industrial
    • Rear: Turf / Industrial
Dimensions & Weight +
  • Overall Length (without Loader): ~100.8"
  • Overall Width: ~42.1"
  • Height (ROPS): ~83.9"
  • Wheelbase: ~54.7"
  • Approx Operating Weight: ~1,257 lbs
Optional / Loader-Installed Specs +

When a loader or implements are installed:

  • Weight increases depending on loader model & attachments.
  • Overall height and length change with quick-attach hardware.
  • We can show side-by-side spec sheets for different configurations.

Ready to Get Your Kubota B2301 Tractor Package?

Cash Price: $23,015 • Financing Available • Delivery Within 100 Miles of Whitewater, KS
Call, email, or build your perfect Kubota package with our team today.

📞 Call Ravenscraft ✉️ Email Kelly ✉️ Email Dan ⚙️ Build Your Own Package 📄 B01 Series Brochure 💲 Tractor & Loader Only Price

Ravenscraft Implement • 223 S. Main St. • Whitewater, KS 67154 • (316) 799-2141
Serving Wichita • Newton • El Dorado • Hutchinson and surrounding Kansas counties since 1962

Kubota B2301 Tractor Package FAQ

What comes in the Kubota B2301 tractor package? +

Our B2301 package is built to be a ready-to-work setup for small farms and rural Kansas properties. Exact equipment can vary by promotion, but a typical package includes:

  • Kubota B2301 4WD compact tractor (23 HP class diesel)
  • Matched Kubota LA435 front loader with bucket
  • 60" rear box blade sized to the tractor (great for driveways and pads)
  • Rotary cutter/brush hog sized for the B2301
  • Category 1 quick hitch or similar hookup to make implement changes easier

We can tweak the package to match how you actually use your tractor — mowing, grading, material handling, pasture, or arena work.

How much horsepower does the B2301 have and what kind of transmission is it? +

The B2301 is in the 23 HP compact tractor class with a Kubota 3-cylinder diesel engine and a 3-range hydrostatic (HST) transmission. That means:

  • Smooth “press-and-go” operation with forward and reverse pedals.
  • Great low-speed control for loader work and grading.
  • Easy for new tractor owners to learn and feel comfortable with.
  • Plenty of power for mowing, driveway maintenance, and general acreage chores.
Can I change or upgrade the implements in the B2301 package? +

Yes. We treat the “standard” B2301 package as a starting point. Customers often:

  • Upgrade to a heavier box blade or rotary cutter.
  • Add pallet forks or a grapple to the LA435 loader.
  • Swap cutter or mower sizes to better match their acreage.
  • Include a quick hitch or different rear implement for their primary job.

Changes will affect the final price, but they let us build a package that actually fits how you use your tractor, not just a one-size-fits-all bundle.

Is delivery included in the B2301 package price? +

Our package pricing typically includes freight and setup at the dealership and delivery within a set radius of Whitewater, KS on most promos.

If you’re outside that radius, we can usually still deliver — there may just be a small additional delivery charge depending on distance and access.

What size property is the B2301 package best for? +

The B2301 hits a sweet spot for:

  • 1–10 acre homesteads and rural homes.
  • Horse properties and small livestock operations.
  • Driveways, barn lots, and small pastures.
  • Properties where you still need to maneuver around trees, pens, and buildings.

If you’re pulling larger ground-engaging implements or working bigger acreages, we’ll also look at stepping up to an L-Series package, but for a lot of Kansas acreages, the B2301 is “just right.”

What financing options are available for the B2301 package? +

Kubota often runs special programs on the B-Series, including low-rate or 0% financing for qualified buyers. The exact terms change throughout the year, so we’ll:

  • Show you the current Kubota promotions.
  • Give example monthly payments based on your package and down payment.
  • Help you compare cash price versus financing so the numbers make sense for your budget.

All financing is subject to credit approval and program availability at the time of purchase.

Popular Land Pride Options

Welcome to Ravenscraft Implement Package Deals

In Business Since 1962

At Ravenscraft Implement, we stock a wide selection of Land Pride implements ready to pair with your new Kubota tractor-from box blades and rotary cutters to quick hitches and grading tools. These are just a few of the options available, and we can easily custom-build a package to match your property needs while still qualifying for Kubota’s special financing and package programs. Our goal is to help you find the perfect tools to work your ground — efficiently, affordably, and locally.

Customer Reviews

★★★★★

“Perfect size for our acreage.” The B2301 handles loader work and mowing without a hiccup. Smooth HST and great visibility.

— Erin T., Wichita, KS


★★★★★

“Package value was excellent.” Loader + implements made it turnkey. Friendly staff and quick delivery.

— Nolan & Paige H., El Dorado, KS


★★★★★

“Big capability in a compact frame.” Box blade and cutter see weekly use. Couldn’t be happier with the power.

— Jeff R., Newton, KS

Average Rating: ★★★★★ (5.0/5)

See more reviews on Google

⭐ View our Google Reviews

Kubota LA435 Front Loader Specifications

Key performance specs for the Kubota LA435 front loader commonly paired with the B2301 and B2601 tractors.

Loader Overview +
  • Loader Model: Kubota LA435
  • Compatible Tractors: Kubota B2301 & B2601
  • Mounting System: Quick-attach / detach loader with built-in parking stands
  • Control: Single-lever joystick for smooth loader operation
  • Design: Curved boom for better visibility from the operator’s seat
Lift Height, Clearance & Dump Angles +
  • Maximum Lift Height (to bucket pivot pin): 78.5 in (1,995 mm)
  • Clearance with Attachment Dumped: 61.7 in (1,568 mm) (approx.)
  • Maximum Dump Angle: 40°
  • Bucket Roll-Back Angle: 25°

This lift height works well for loading small dump trailers, pickup beds, and typical farm wagons while still staying compact enough for tight spaces around barns and pens.

Lift Capacity & Breakout Force +
  • Lift Capacity @ Pivot Pin (max height): 948 lbs (430 kg)
  • Lift Capacity @ 19.7" forward (max height): 659 lbs (299 kg)
  • Breakout Force @ Pivot Pin: 2,146 lbf (973 kgf)
  • Breakout Force @ 19.7" forward: 1,520 lbf (690 kgf)

Real-world: this is a strong compact-tractor loader rating — great for dirt, gravel, manure, pallets within reason, and general acreage chores when properly ballasted.

Bucket & Attachment Interface +
  • Standard Bucket Width: typically 54" bucket (varies by package)
  • Attachment Style: Kubota-style quick attach; some setups may use skid-steer style QA (SSQA) buckets or adapters
  • Common Attachments: standard bucket, materials bucket, pallet forks, light-duty grapple (with proper valve), etc.

On your package pages you can call out specific bucket type (pin-on vs QA / SSQA) and any popular add-ons like forks or grapples.

Loader Weight & Tractor Match +
  • Approximate Loader Weight (less bucket): ~459 lbs (208 kg)
  • Recommended Ballast: Rear implement and/or loaded rear tires for full lift performance
  • Matched To: B2301/B2601 chassis and hydraulic flow for quick, smooth cycling

For real work — especially lifting near rated capacity — we’ll usually recommend a rear ballast box, heavy box blade, or other implement plus loaded rears for stability.

Land Pride 3 Point Quick Hitch QH05

Cash Price $350 or $4.48 per mo
Details »

Land Pride BB1248 48″ Box Blade

Cash Price $975 or 12.48 per mo 84 mo
Details »

Land Pride GS1560 60″ Grading Scraper

Cash Price $1,875 or $24.00 per mo
Details »

Land Pride PFL1242 1200lb 42″ Pallet Forks

Cash Price $875 or $11.20 per mo
Details »

Land Pride RTR1250 50″ Reverse Tine Tiller

Cash Price $3,200 or $40.95 per mo
Details »

Land Pride FDR1660 60″ 3-Point Finish Mower

Cash Price $3,500 or $44.79 per mo
Details »

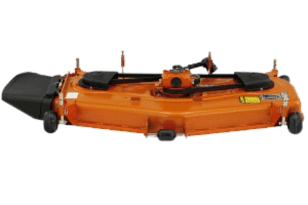

Kubota RCK60-30BC 60″ Mid Mount Mower Deck

Cash Price $3,950 or $49.14 per mo
Details »

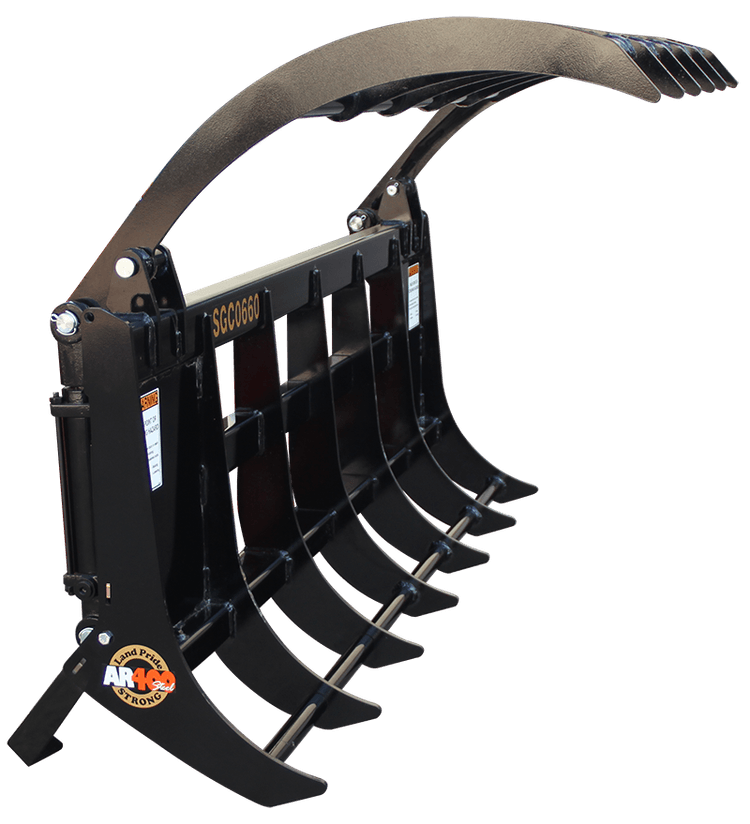

Land Pride SGC0660 60″ Claw Grapple (Requires 3rd Function Valve)

Cash Price $2,675 or $34.23 per mo
Details »

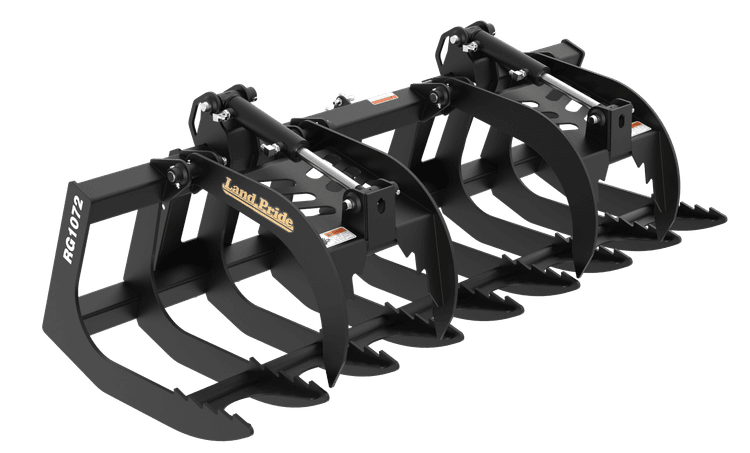

Land Pride RG1060 60″ Root Grapple (3rd Function Valve Required)

Cash Price $3,500 or $44.79 per mo
Details »

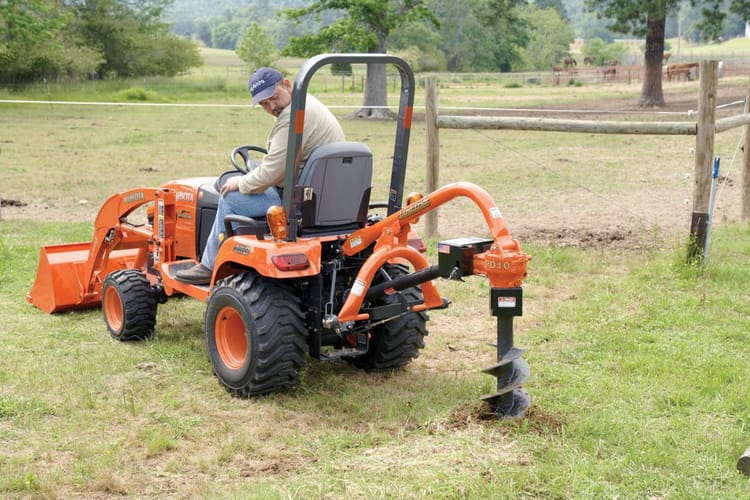

Land Pride PD10 Post Hole Digger with 9″ Auger

Cash Price $1,800 or $23.04 per mo
Details »

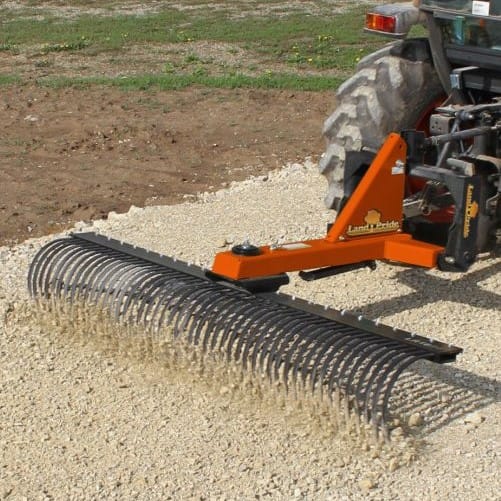

Land Pride LR1672 72″ 3-Point Landscape Rake

Cash Price $1,375 or $17.60 per mo
Details »

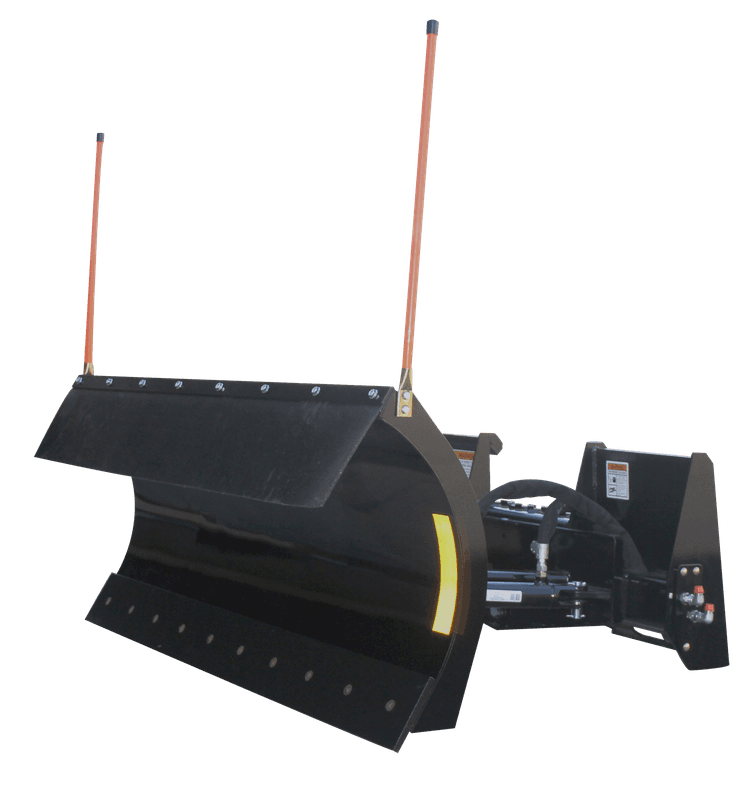

Land Pride STB1072-01-30 72″ Snow Trip Blade

Cash Price $2,600 or $33.27 per mo
Details »

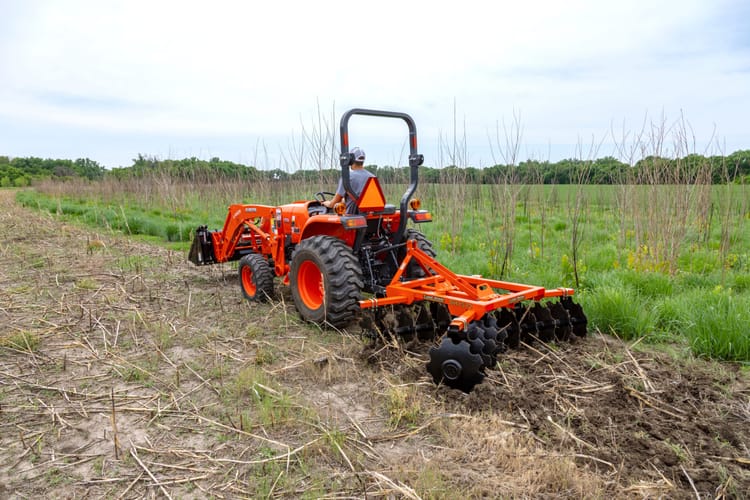

Land Pride DH1060 60″ Disc

Cash Price $2,150 or $27.51 per mo
Details »

Land Pride FSP700 Fertilizer Spreader

Cash Price $1,200 or $15.36 per mo
Details »

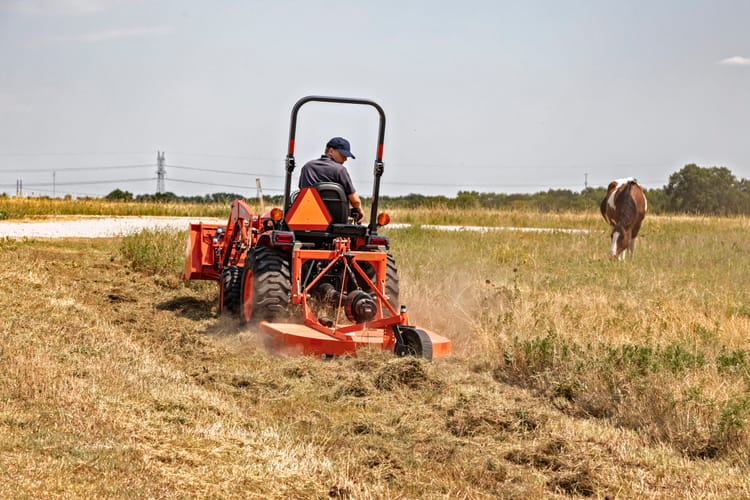

Land Pride RCR1260 60″ Rotary Cutter

Cash Price $2,150 or $27.51 per mo
Details »

Land Pride RCR1260 60″ Rotary Cutter

Cash Price $2,150 or $27.51 per mo
Details »

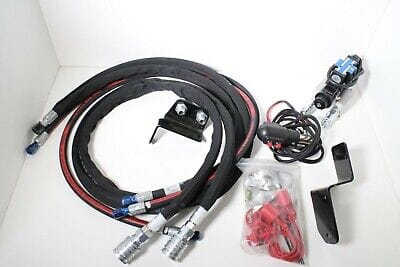

Land Pride 380-354A FF 3rd Function Valve B01 Flat Face

Cash Price $1,175 or $15.04 per mo
Details »

Land Pride SA10-20-53-11 9″ Auger For BX and B Series

Cash Price $2,975 or $38.07 per mo
Details »

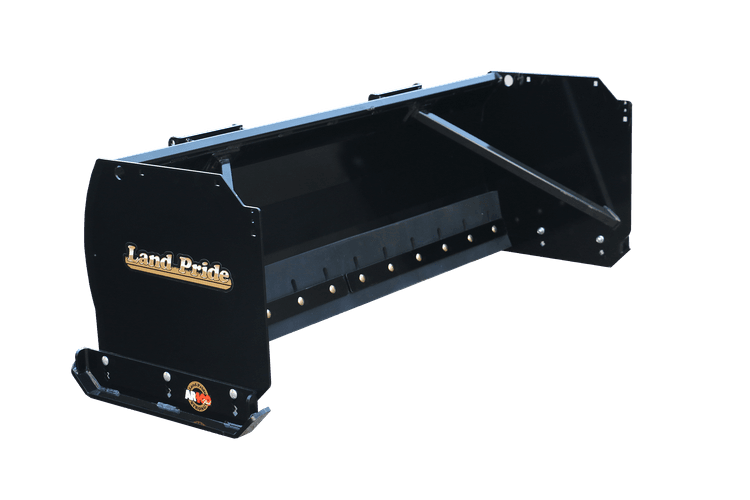

Land Pride SPL1060 60″ Snow Pusher

Cash Price $1,525 or $19.52 per mo
Details »

Land Pride SP2060 60″ Soil Pulverizer

Cash Price $2,375 or $30.39 per mo
Details »
