The Land Pride RB1684 is the largest model in the RB16 Series, built for compact and utility tractors that need maximum coverage without stepping into the heavier RB26 Series. With an 84-inch working width, 3-way adjustment (angle, offset, and tilt), and rugged construction, the RB1684 is ideal for maintaining long gravel driveways, shaping drainage ditches, grading building sites, backfilling, landscaping, and clearing snow. It’s designed for tractors in the 20–40 horsepower range and is an excellent fit for larger Kubota L Series and LX Series tractors.
The RB1684 gives you professional grading capability with three essential adjustments:
The rolled 14-inch moldboard allows material to flow smoothly across the blade, reducing drag while producing a cleaner, more consistent finish.
| Specification | RB1684 |
|---|---|
| Working Width | 84 in. |
| Tractor HP Rating | 20–40 HP |
| Approximate Weight | 319 lbs. |
| Hitch | Category I (Quick Hitch Compatible) |
| Blade Angle | 7 forward positions up to 45°, 3 reverse positions up to 30° |
| Blade Offset | 12 in. left or right |
| Blade Tilt | 5 positions, up to 15° up or down |
| Moldboard Height | 14 in. |
| Moldboard Thickness | ¼ in. |
| Cutting Edge | ½” × 6″ Heat-treated, replaceable & reversible (double bevel) |
| Parking Stand | Folding |
| Optional Accessories | Hydraulic Angle Kit, Skid Shoes, Landscape Rake Conversion |
The RB1684 is an excellent match for:
The RB1684 is the rear blade I recommend for customers who have long driveways or larger properties and want to cover more ground with each pass. The 84-inch width significantly reduces grading and snow removal time while still providing full tire coverage when the blade is angled behind larger compact tractors.

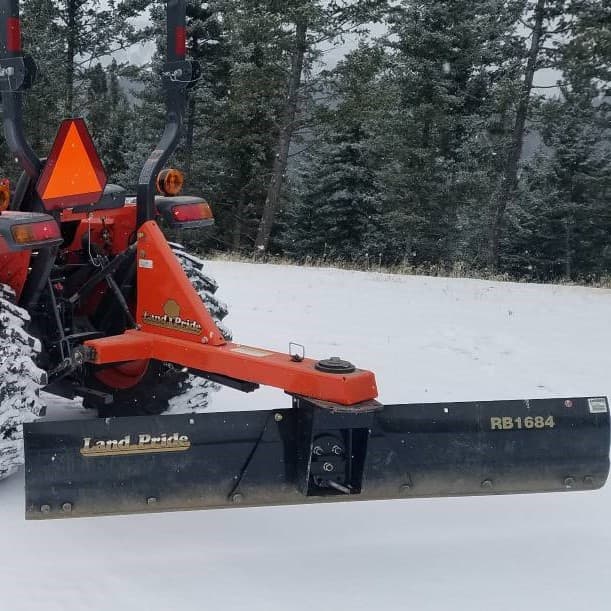

For L4701, L4802, and the MX Series, the RB1684 is an excellent fit. It has enough weight to cut into packed gravel, yet it’s not so heavy that it overwhelms these tractors. The tilt feature allows you to restore the crown on a gravel driveway, improve drainage, and eliminate potholes caused by standing water. In the winter, reverse the blade to clear snow over gravel without disturbing the driveway, then angle it to roll snow cleanly off to one side once the ground freezes.
If you’re maintaining long rural driveways, acreage roads, horse arenas, or building sites, the RB1684 is one of the best values in the Land Pride lineup. It offers the versatility of a professional grading blade while remaining an ideal match for today’s larger compact tractors.
