Kubota Hay Tools for South Central Kansas

Disc mowers, mower conditioners, rakes and balers matched to the way hay actually gets made around Whitewater, Wichita, Newton, Augusta & south central Kansas. Whether you’re putting up alfalfa, prairie hay, or grass mix, millet or sudan grass, our Kubota hay tools are spec’d to match your fields and current tractor.

Your browser does not support the video tag.

In-Stock Focus Models

  • Disc Mowers & Mower Conditioners: DM2028, DM2032, DMC8536R/RS, DMC8540R/RS, DMC8547R
  • Rakes: RA1042T, RA210CR, RA212CR, RA2584
  • Balers: BV4180 4'X 6', BV4580 5'X6'

We keep the most requested hay tools for this area on the yard so you’re ready when the hay window opens — not waiting on freight.

Call Sales · 316-799-2141 Email Hay Tools Team

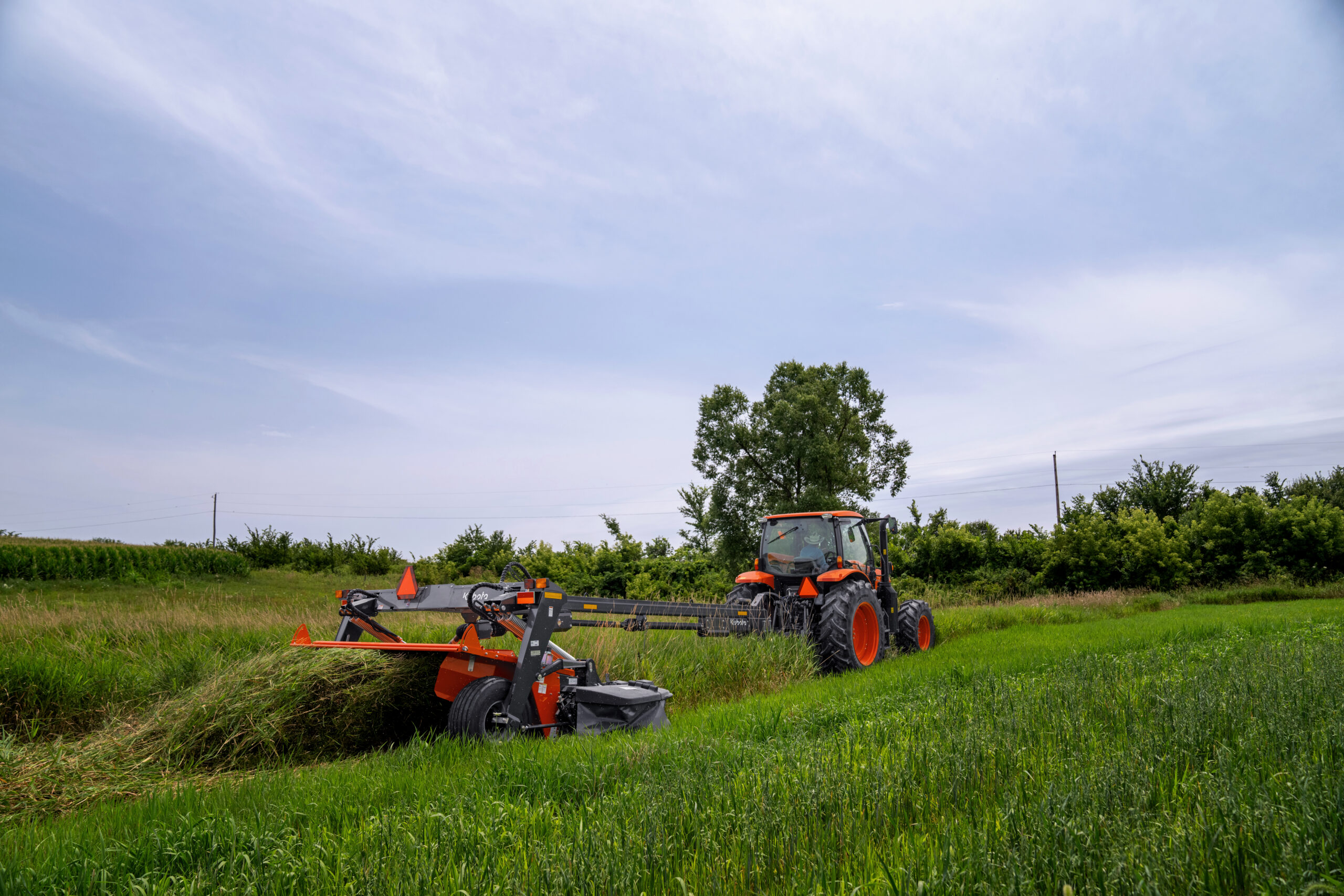

Kubota DMC8536R mower conditioner with M6 tractor in hay field
Kubota DMC8536R center-pivot disc mower conditioner

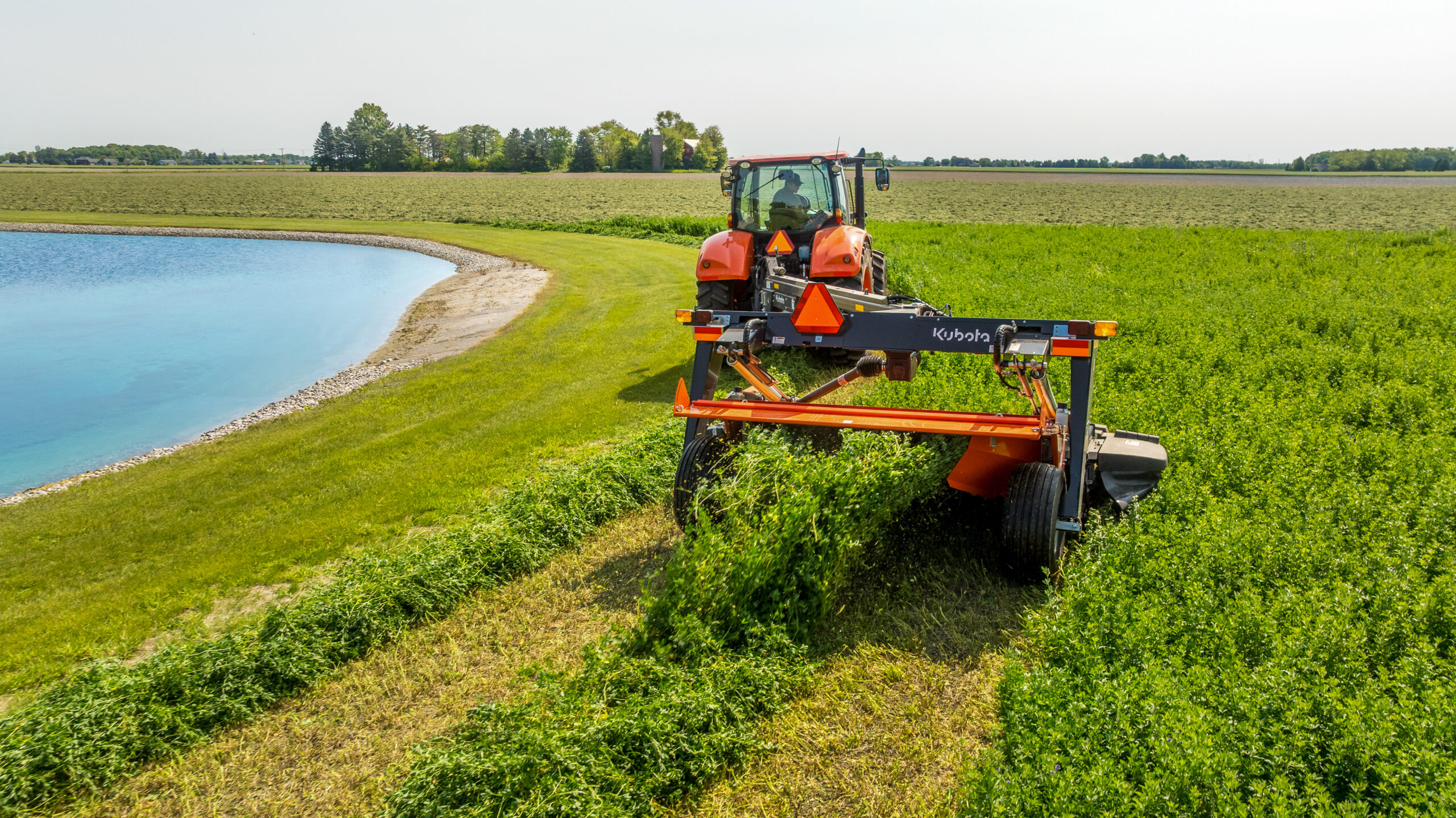

Kubota DMC8540 center pull mower conditioner
DMC8540R center-pull mower conditioner
Kubota BV4580 round baler behind Kubota M7 tractor
BV4580 5x6 baler matched to larger row-crop tractors

Disc Mowers & Mower Conditioners

Clean cutting, fast drying and simple driveline design. From DM2028 & DM2032 rear-mount mowers for smaller tractors to DMC8500-series mower conditioners for wide, high-capacity swaths, we can match you to the right width and conditioner for your hay program.

DM2028 & DM2032 Rear-Mount Disc Mowers
.

Simple, durable rear-mounted disc mowers that fit the most common utility tractors in our area. Great for alfalfa, brome and native mix where you want a clean cut and low maintenance.

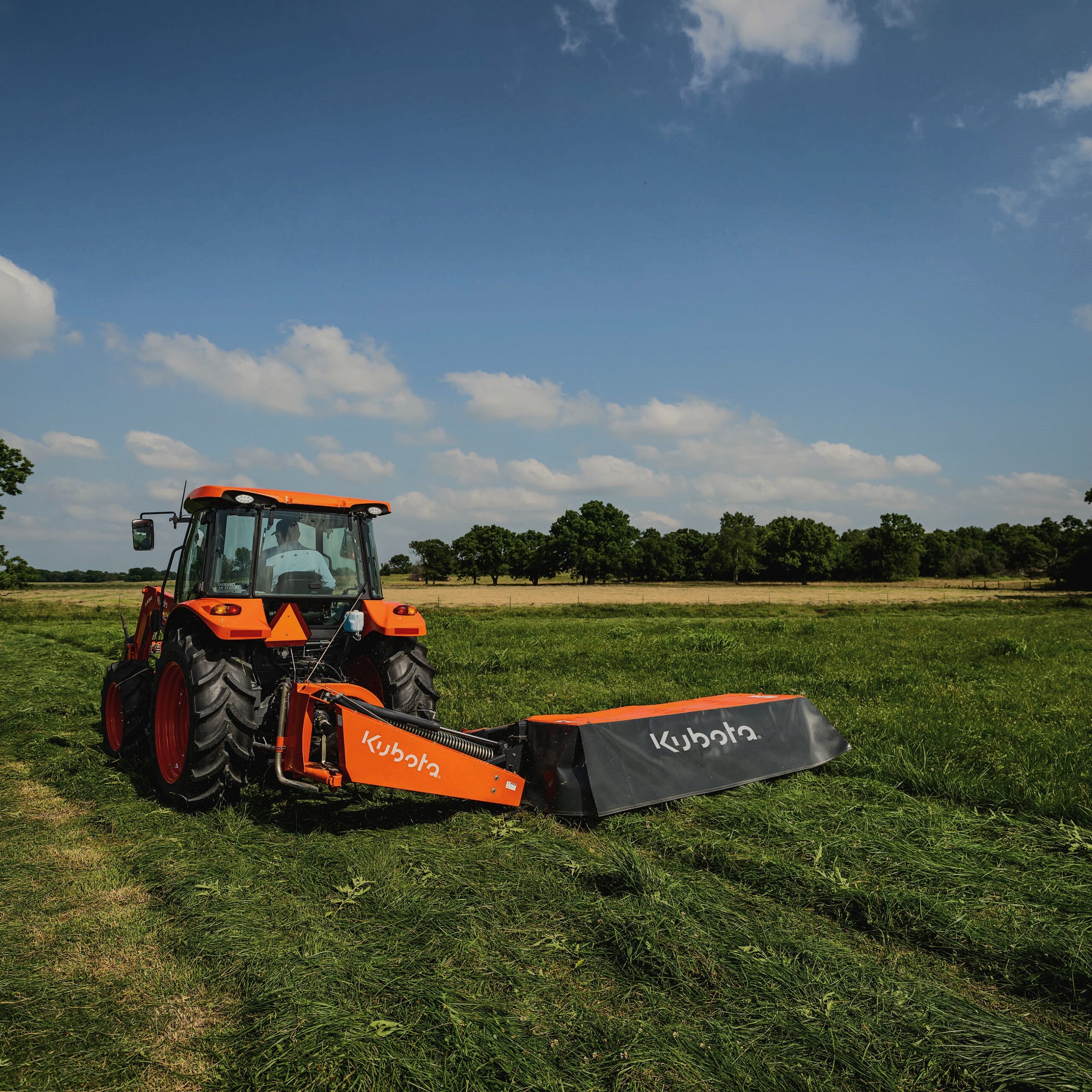

Kubota DM2028 rear mount disc mower
Kubota DM2028 rear-mount disc mower
Model Cutting Width Approx. Min PTO HP
DM2028 9'2" ~50 HP+
DM2032 10'6" ~55 HP+
  • unique triple knife cutter bar design
  • Non-Stop BreakAway protection on the cutterbar
  • Flexible suspension for contour following
  • Fully Welded Cutter Bar with over lapping C Channels
  • Excellent match for 60–90 HP tractors

Brochure: DM1000/DM2000 Series Disc Mowers (PDF)

DMC8536R/RS, DMC8540R/RS
& DMC8547R/RS Mower Conditioners

For serious acres, the DMC8500-series delivers wide cutting widths with rubber or steel roller conditioning to fit your crop. Ideal for producers selling hay by RFV and TDN where drying time and leaf retention matter.

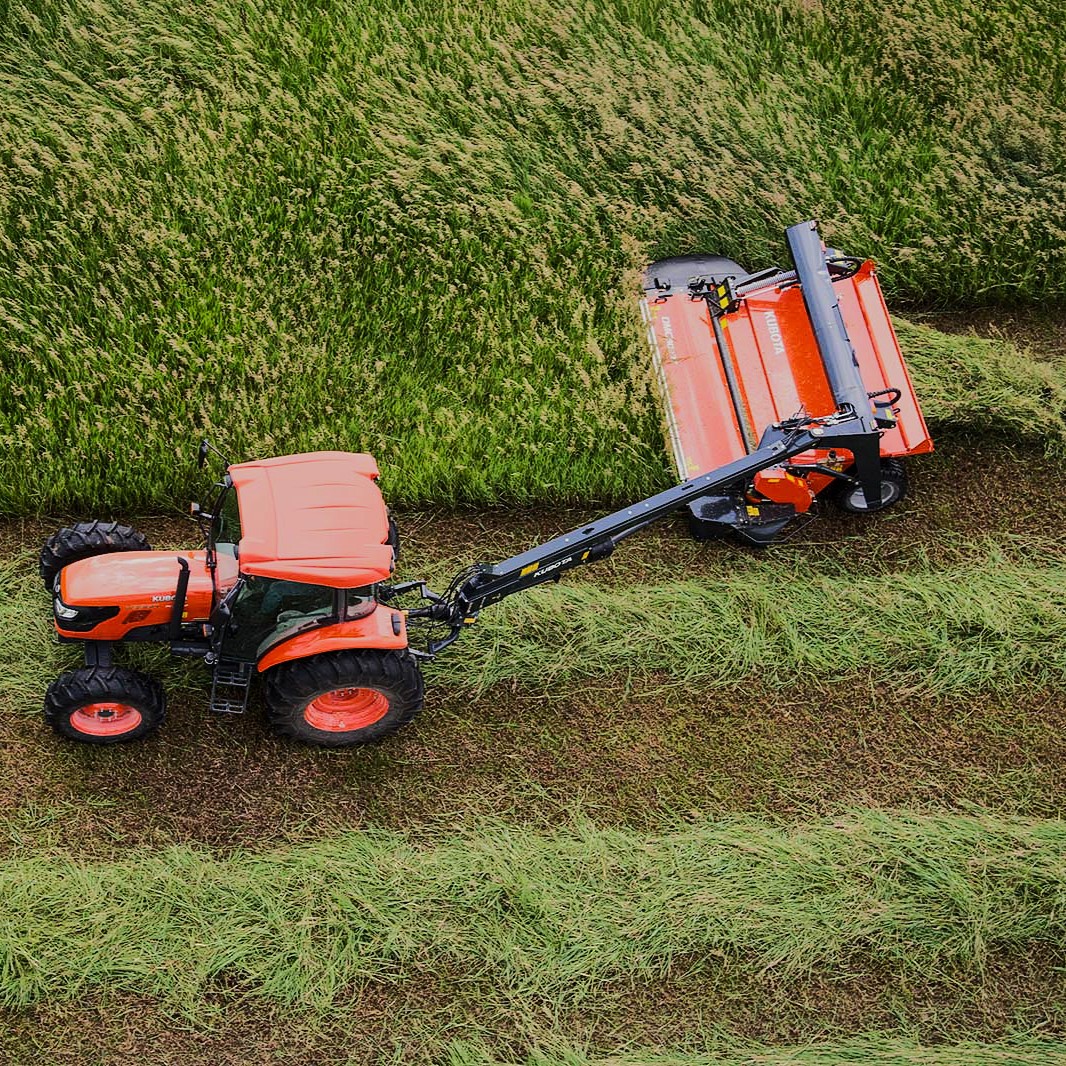

Kubota DMC mower conditioner suspension
DMC suspension system for smooth ground following
Model Working Width Typical Tractor
DMC8536R/RS ~11'10" 70–90 HP
DMC8540R/RS ~13'1" 90–120 HP
DMC8547R/RS ~15'6" M6 / M7
  • Unique triple knife cutter bar design
  • Roller or tine conditioner options
  • Superior quad spring floatation system for smooth ground following
  • Fully Welded Cutter Bar with over lapping C Channels

Brochure: DMC8000/DMC8500 Disc Mower Conditioners (PDF)

Rakes for Tight, Clean Windrows

From wheel rakes for fast coverage to rotary rakes that build cleaner windrows for round balers, we set up Kubota rakes to match your mower width, baler choice and field conditions.

★ 2-Year Warranty on All Kubota Rakes ★

Wheel Rakes — RA210CR & RA212CR

Wheel rakes remain a favorite for many hay producers because of their simplicity, speed, and ability to move large amounts of crop quickly. Independent wheels for maximum down pressure throughout.

Kubota RA212CR wheel rake working in hay field
Kubota RA212CR wheel rake
Model Type Working Width
RA210CR Carted wheel rake ~21'
RA212CR Carted wheel rake ~25'
  • Multiple set points to maximize gathering width to desired windrow width
  • Independent rake wheels provide maximum down pressure throughout field conditions
  • Polymer rake bushings eliminate numerous greasing points
  • Ground-driven rake wheels for simple, reliable operation
  • Excellent for prairie hay and grass crops
  • High acres-per-hour capability for cattle operations

Rotary Rakes — RA1042T & RA2584

Rotary rakes lift the crop gently and place it in a uniform windrow, helping preserve leaf quality in alfalfa and producing cleaner windrows for modern round balers.

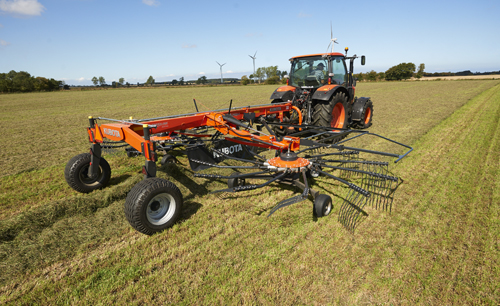

Kubota RA2584 twin rotor rotary rake
Kubota RA2584 twin rotor rotary rake
Model Type Working Width
RA1042T Single rotor rotary rake ~10–14'
RA2584 Twin rotor rotary rake ~24'11"–27'7"
  • Multiple single & dual rotor side delivery models available
  • Multiple dual rotor models available
  • PTO driven non-ground contact raking eliminates unwanted debris
  • Superior windrow formation for faster dry down
  • Gentle crop handling helps protect alfalfa leaves
  • Produces consistent windrows ideal for round balers
  • Adjustable cam track and rotor height for crop control

Brochure: Kubota Rotary Tedders & Rakes (PDF)

BV Series Round Balers

Kubota BV round balers are built for the way bales move around Kansas: feeding cow-calf pairs, selling hay to neighbors and hauling down the highway.

★ 2-Year or 15,000 bale Warranty on All Kubota BV Balers ★

BV4160 — 4x5 Baler

A solid 4x5 choice for hay producers who want manageable bales for feeding and hauling, with a baler size that’s easy to tow and easy to operate.

Bale Size Best Fit Typical Tractor
4' x 5' Feeding + smaller acreage ~70–110 HP
  • Easy-to-handle bale size for loading and feeding
  • Great for tighter fields and shorter hay windows
  • Strong fit for cow-calf operations

BV4180 — 4x6 Baler

A high-capability 4x6 baler when you want more bale weight than a 4x5, while staying easy to tow and easy to set up for consistent bales.

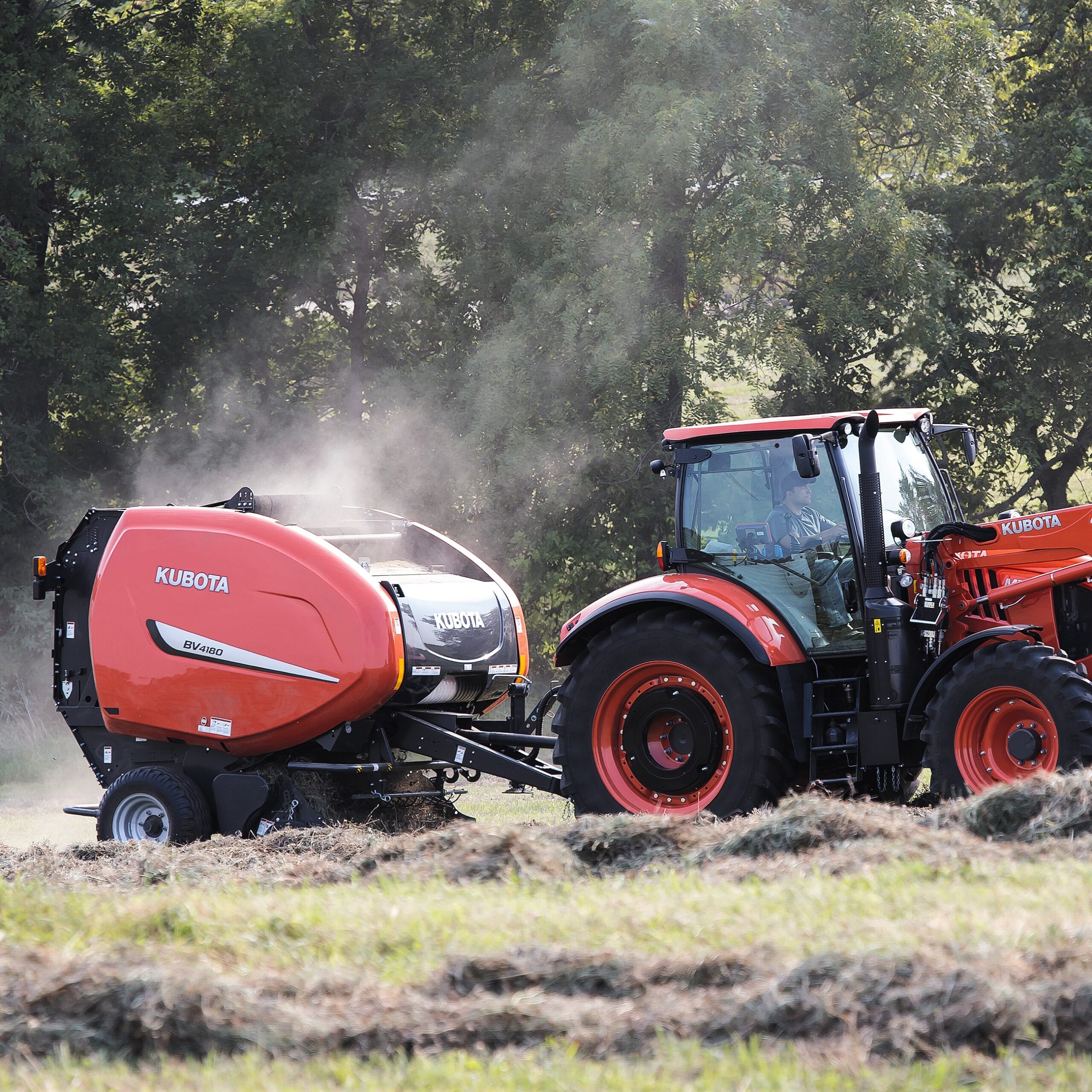

Kubota BV4180 round baler
Kubota BV4180 4x6 round baler
Bale Size Chamber Binding
Up to ~4' x 6' Variable Chamber Net Wrap
  • Strong density and consistent bale shape
  • Great bale size for feeding or resale
  • Excellent match to common 75–110 HP tractors

Product page: Kubota BV4180

BV4580 — 5x6 Baler

For mid- to large-size hay operators desiring 5-foot wide bales, the BV4580 delivers heavier bales and fewer bales per field — a strong choice when you’re moving more tons.

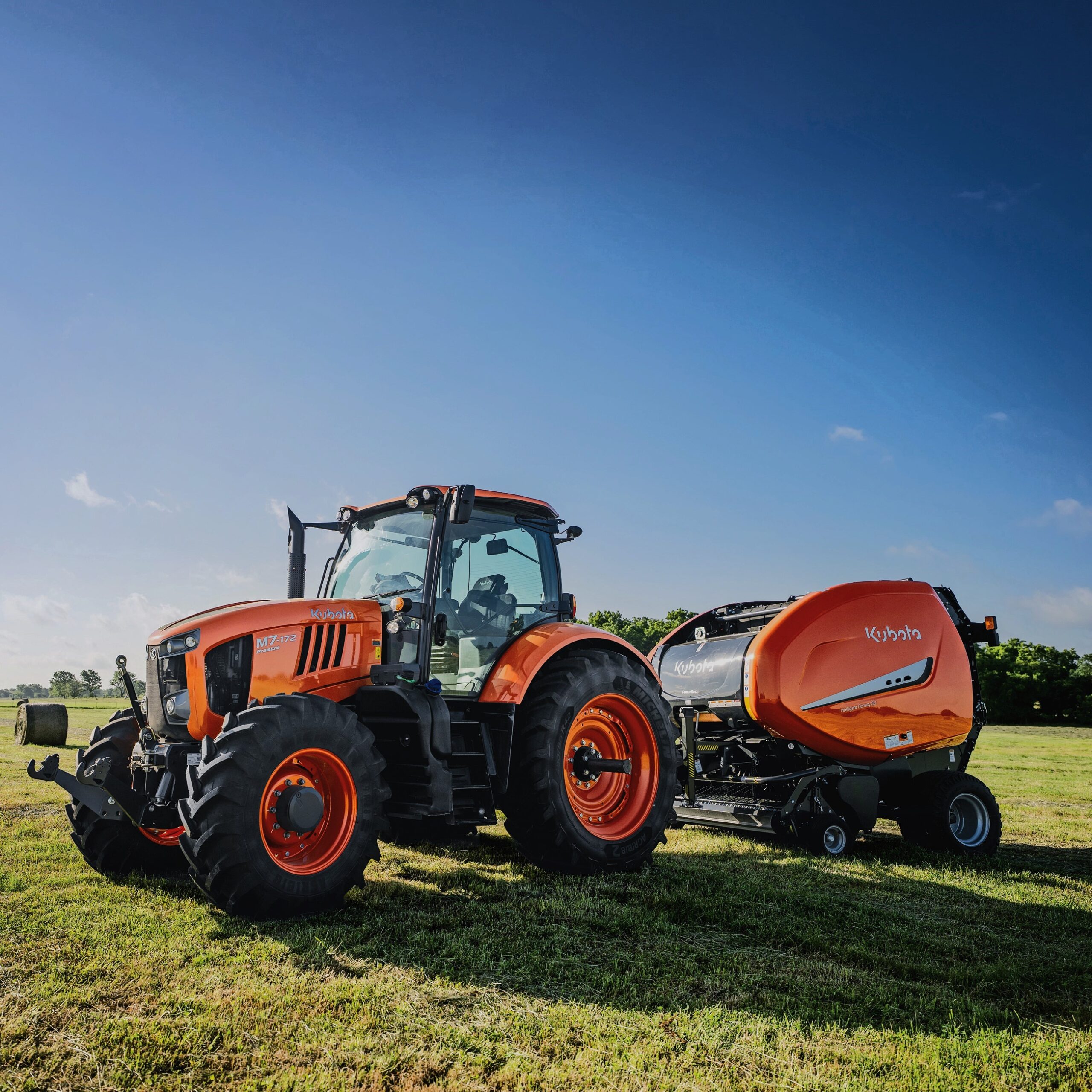

Kubota BV4580 round baler behind Kubota M7 tractor
Kubota BV4580 5x6 round baler
Bale Size Chamber Binding
Up to ~5' x 6' Variable Chamber Net Wrap
  • 5' wide bales reduce bale count per field
  • High density for efficient hauling and stacking
  • Wide pickup and hydraulic functions for heavier windrows

Brochure: Kubota BV4580 Round Baler (PDF)

How We Help You Choose the Right Hay Setup

No two hay operations around here are the same. We start with your acres, your tractors, and how you sell or feed hay, then build a mower–rake–baler combination that pays for itself in fewer trips, less waste and better forage.

Cow-Calf & Small Hay Producers

Typical match: DM2028/DM2032 + RA1042T + BV4180 behind a 75–100 HP tractor. Easy to tow, easy to maintain, and sized right for feeding your own cows with some hay left to sell.

Mid to Large Size Acreage Owners

Typical match: DMC8500-series mower conditioner + RA2584 rotary rake + BV4580 5x6 baler behind M-Series tractors. Built for long days, heavy windrows and demanding customers.

Mixed Row-Crop & Hay Operations

Using your main row-crop tractor for hay? We’ll size the mower and baler so you’re not overworking the hay tool or under-using the horsepower. Many Kansas farms here run M6/M7 tractors on DMC mowers and BV balers.

Kubota Hay Tools — Frequently Asked Questions

What size tractor do I need for a DMC8536R mower conditioner?

In our experience, a 90-110 HP 4WD tractor is a good fit for a DMC8536R in Kansas hay. Exact requirement depends on terrain, windrow size and how fast you like to run. Bring your tractor info and we’ll confirm PTO and drawbar setup.

Should I go 4x5 (BV4180) or 5x6 (BV4580) on round bales?

If you’re feeding mostly your own cows and hauling shorter distances, 4x5 bales are easier to handle and work great. If you’re selling hay or shipping longer distances, the 5x6 BV4580 makes fewer, heavier bales per field and can lower hauling cost per ton. We’ll talk through your loader, trailers and buyers.

Can I start with a disc mower and upgrade to a mower conditioner later?

Absolutely. Many operations here start with a DM2028/DM2032 disc mower to get away from sickle bars, then move into a DMC mower conditioner as acres and hay sales grow. We’ll size your rake and baler with that upgrade path in mind.

Do you stock parts and provide service for these hay tools?

Yes. Our technicians and parts department support the Kubota hay tools we sell with in-season priority, from knives and guards to belts, tines and electronics. If you’re broke down with hay on the ground, we’ll do everything we can to get you going.

Ready to Talk Kubota Hay Tools?

Whether you’re upgrading one piece at a time or building a full mower–rake–baler package, our team in Whitewater, Kansas can walk through options, payments and in-season support.

Call 316-799-2141 Email Hay Tools Sales

Delivery available within roughly 100 miles of Whitewater, KS. Ask us about current Kubota hay tools programs and financing.
